745494 Series

Catalog

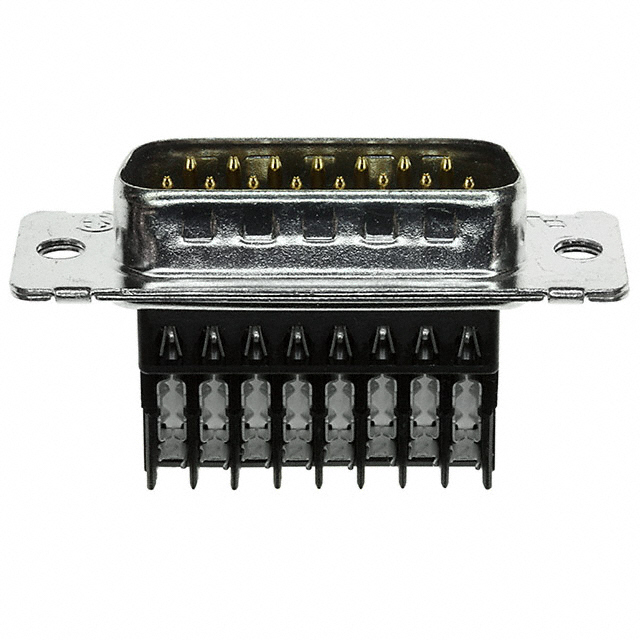

CONN D-SUB PLUG 15POS IDC

Part	Color	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Features	Current Rating (Amps)	Number of Positions	Flange Feature	Contact Type	Contact Finish	Connector Type	Contact Finish Thickness	Shell Size, Connector Layout	Termination	Number of Rows [custom]	Connector Style	Mounting Type	Material Flammability Rating
TE Connectivity AMP Connectors 745494-2	Black	26 AWG	22 AWG	250 V	Thermoplastic Glass Filled	-55 C	105 ░C	Phosphor Bronze	Grounding Indents	Varies by Wire Gauge	15	Housing/Shell (Unthreaded)	Signal	Gold	Plug Male Pins	Flash	2	Discrete Wire IDC	2	D-Sub	Free Hanging (In-Line)	UL94 V-0
TE Connectivity AMP Connectors 745494-5	Black	26 AWG	22 AWG	250 V	Thermoplastic Glass Filled	-55 C	105 ░C	Phosphor Bronze	Grounding Indents	Varies by Wire Gauge	15	Housing/Shell (Unthreaded)	Signal	Gold	Plug Male Pins	Flash	2	Discrete Wire IDC	2	D-Sub	Free Hanging (In-Line)	UL94 V-0
