60S165 Series
Manufacturer: Rosenberger
Beta
⌘K

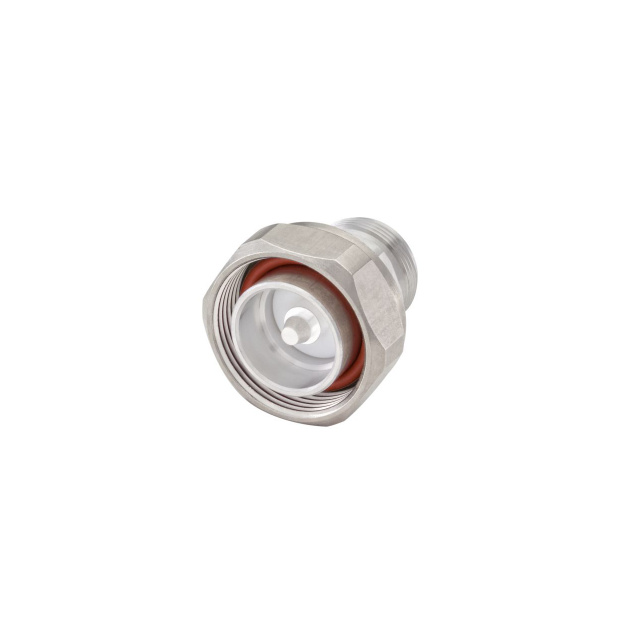

7/16 ADAPTER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insertion Loss | Body Material | Body Finish | Mating Cycles | Dielectric Material | Center Contact Material | Impedance | Convert From (Adapter End) | Center Contact Plating | Conversion Type | Mounting Type | Convert To (Adapter End) | Frequency - Max [Max] | Adapter Type | Style | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 155 C | -55 C | 0.27 dB | Brass | White Bronze | 500 | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 50 Ohms | 4.1/9.5 Jack Female Socket | Silver | Between Series | Free Hanging (In-Line) | 7/16 Plug Male Pin | 7.5 GHz | Plug to Jack | Straight | 4.1/9.5 to 7/16 |
