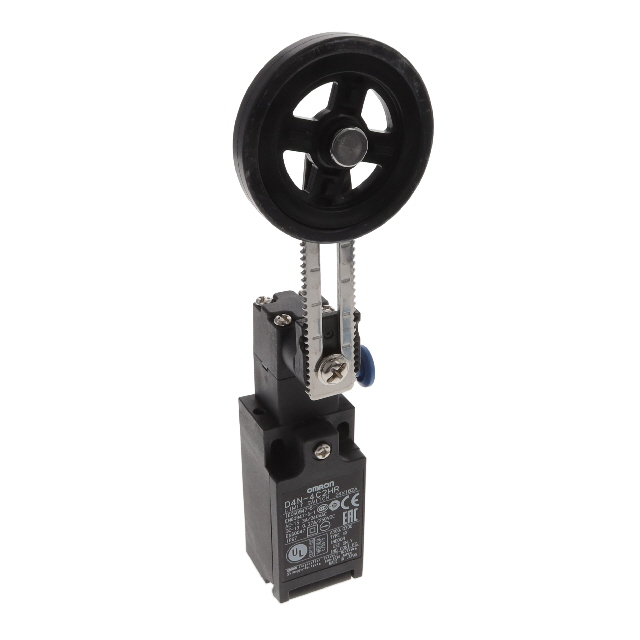

D4N-4C2 Series
Manufacturer: Omron Automation and Safety
Beta
⌘K
SWITCH SNAP ACTION 3PST 10A 120V
| Part | Switch Function | Actuator Type | Mounting Type | Voltage Rating - DC | Operating Force | Voltage Rating - AC | Termination Style | Pretravel | Ingress Protection | Current Rating (Amps) | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Features | Release Force | Overtravel | Electrical Life | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | Off-Mom On-Mom | Side Rotary Adjustable Roller | Chassis Mount | 125 VDC | 551 gf | 120 V | Screw Terminal | 18 ° | IP67 - Dust Tight Waterproof | 2.5 A 10 A | 3PST-2NC/1NO | -30 ░C | 70 °C | |||||
 Omron Automation and Safety | Off-Mom On-Mom | Side Rotary Adjustable Roller | Chassis Mount | 250 V | 459 gf | 240 V | Screw Terminal | 18 ° | IP67 - Dust Tight Waterproof | 3 A 270 mA | 3PST-2NC/1NO | -30 ░C | 70 °C | Metal Lever Rubber Roller | 41 gf | 40 ° | 300000 Cycles | 15000000 Cycles |
 Omron Automation and Safety | Off-Mom On-Mom | Side Rotary Adjustable Roller | Chassis Mount | 250 V | 459 gf | 240 V | Screw Terminal | 18 ° | IP67 - Dust Tight Waterproof | 3 A 270 mA | 3PST-2NC/1NO | -30 ░C | 70 °C | Metal Lever Resin Roller | 41 gf | 40 ° | 300000 Cycles | 15000000 Cycles |
