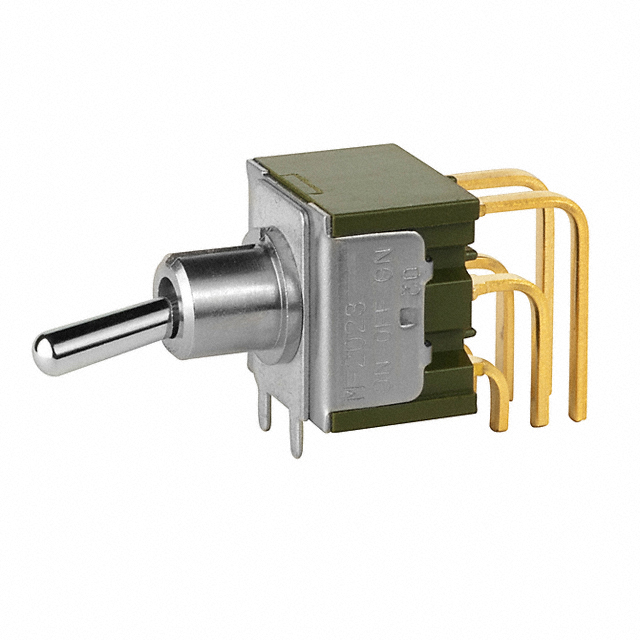

M2023S3 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Bushing Thread | Panel Cutout Dimensions [diameter] | Illumination | Current Rating (Amps) | Circuit | Actuator Type | Voltage Rating - DC | Mounting Type | Termination Style | Switch Function | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Brass Chrome Plated | 25000 Steps | 1/4-40 | 6.5 mm | Non-Illuminated | 3 A 6 A | DPDT | Standard Round | 30 V | Panel Mount | Solder Lug | On-Off-On | 6.5 mm | 85 °C | -30 ░C | Epoxy Sealed Terminals | 125 V |
 NKK Switches | Brass Chrome Plated | 50000 Cycles | Unthreaded | 6.5 mm | Non-Illuminated | 0.4 VA | DPDT | Standard Round | 28 V | Right Angle Through Hole Vertical | PC Pin | On-Off-On | 8.28 mm | 85 °C | -30 ░C | Epoxy Sealed Terminals | 28 V |
