109P0424 Series

Catalog

AXIAL FAN, 40MM, 0.32M3/MIN, 37DBA, 24V ROHS COMPLIANT: YES

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	RPM	Weight	Weight	Static Pressure	Static Pressure	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Width [x]	Voltage - Rated	Fan Type	Features	Noise	Termination	Approval Agency	Lifetime @ Temp.	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]
Sanyo Denki America Inc. 109P0424H3D013	12	27.6 VDC	Plastic	0.316 m³/min	11.3 CFM	Plastic	0.095 A	40 mm	40 mm	Ball	8700 RPM	52.16 g	0.115 lb	102.9 Pa	0.414 in H2O	2.28 W	-20 ░C	70 °C	28 mm	24 VDC	Tubeaxial	Locked Rotor Sensor	37 dB	3 Wire Leads	CSA TUV UL
Sanyo Denki America Inc. 109P0424G602	12	27.6 VDC	Plastic	0.347 m³/min	12.4 CFM	Plastic	150 mA	40 mm	40 mm	Ball	12500 RPM	45.81 g	0.101 lb	153.8 Pa	0.618 in H2O	3.6 W	-20 ░C	60 °C		24 VDC	Tubeaxial		44 dB(A)	2 Wire Leads	CSA TUV UL	40000 Hrs	20 mm	60 °C	-4 °F
Sanyo Denki America Inc. 109P0424G3013	12 VDC	26.4 VDC	Plastic	0.414 mł/min	14.8 CFM	Plastic	190 mA	40 mm	40 mm	Ball	11500 RPM	52.16 g	0.115 lb	179 Pa	0.719 in H2O	4.56 W	-20 ░C	60 °C	28 mm	24 VDC	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	42 dB	3 Wire Leads	CSA TUV UL	40000 Hrs		60 °C	-4 °F
Sanyo Denki America Inc. 109P0424H702			Plastic	0.179 mł/min	6.4 CFM	Plastic		40 mm	40 mm	Ball	7700 RPM			75.5 Pa	0.303 in H2O	1.92 W	-20 ░C	70 °C		24 VDC	Tubeaxial		28 dB	2 Wire Leads	CSA TUV UL		15 mm			32.21 g	0.071 lb

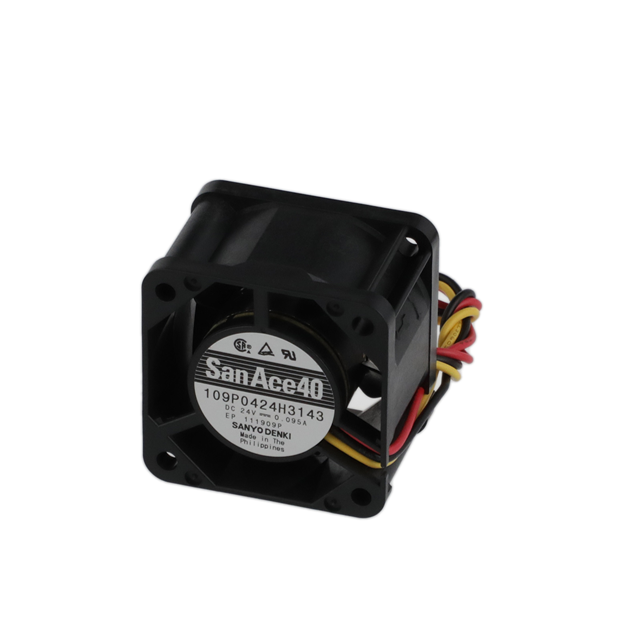

Sanyo Denki America Inc. 109P0424H3143	12	27.6 VDC	Plastic			Plastic	140 mA	40 mm	40 mm	Ball	8700 RPM	52.16 g	0.115 lb				-20 ░C	70 °C	28 mm	24 VDC	Tubeaxial	Locked Rotor Protection Speed Sensor (Tach)	37 dB	3 Position Rectangular Connector	CSA TUV UL
Sanyo Denki America Inc. 109P0424F3023	14	27.6 VDC	Plastic	0.241 mł/min	8.6 CFM	Plastic	0.055 A	40 mm	40 mm	Ball	6700 RPM	52.16 g	0.115 lb	58.8 Pa	0.236 in H2O	1.32 W	-20 ░C	70 °C	28 mm	24 VDC	Tubeaxial		30 dB	2 Wire Leads	CSA TUV UL
Sanyo Denki America Inc. 109P0424G3D013	12 VDC	26.4 VDC	Plastic	0.414 mł/min	14.8 CFM	Plastic	190 mA	40 mm	40 mm	Ball	11500 RPM	52.16 g	0.115 lb	179 Pa	0.719 in H2O	4.56 W	-20 ░C	60 °C	28 mm	24 VDC	Tubeaxial	Locked Rotor Sensor	42 dB	3 Wire Leads	CSA TUV UL	40000 Hrs		60 °C	-4 °F
Sanyo Denki America Inc. 109P0424F602	14	27.6 VDC	Plastic	0.182 m³/min	6.5 CFM	Plastic	60 mA	40 mm	40 mm	Ball	6500 RPM	45.81 g	0.101 lb	45.1 Pa	0.181 in H2O	1.44 W	-20 ░C	70 °C		24 VDC	Tubeaxial		28 dB	2 Wire Leads	CSA TUV UL		20 mm
Sanyo Denki America Inc. 109P0424J3023	12 VDC	26.4 VDC	Plastic	0.454 m³/min	16.2 CFM	Plastic	0.18 A	40 mm	40 mm	Ball	12500 RPM	52.16 g	0.115 lb	210 Pa	0.843 in H2O	4.32 W	-20 ░C	60 °C	28 mm	24 VDC	Tubeaxial		44 dB(A)	2 Wire Leads	CSA TUV UL	40000 Hrs		60 °C	-4 °F
Sanyo Denki America Inc. 109P0424D601	12	27.6 VDC	Plastic	0.305 mł/min	10.9 CFM	Plastic		40 mm	40 mm	Ball	11000 RPM	45.81 g	0.101 lb	124 Pa	0.498 in H2O	3.12 W	-20 ░C	60 °C		24 VDC	Tubeaxial	Speed Sensor (Tach)	42 dB	3 Wire Leads	CSA TUV UL	40000 Hrs	20 mm	60 °C	-4 °F
