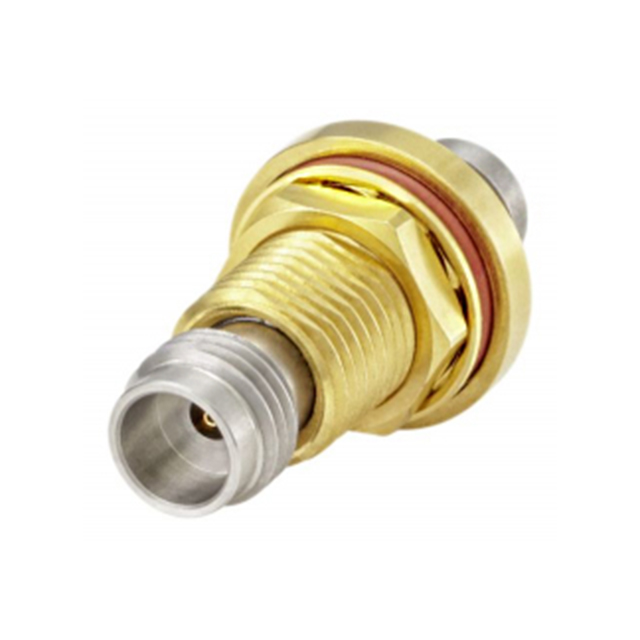

08K641 Series
Manufacturer: Rosenberger
Beta
⌘K
RF ADAPTERS - IN SERIES ADAPTOR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Insertion Loss | Body Finish | Dielectric Material | Center Contact Material | Mating Cycles | Convert From (Adapter End) | Center Gender | Mounting Feature | Frequency - Max [Max] | Adapter Type | Adapter Series | Mounting Type | Convert To (Adapter End) | Center Contact Plating | Impedance | Conversion Type | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 85 °C | -40 C | Brass | 0.84 dB | Gold | Polystyrene (PS) | Beryllium Copper | 500 | 1.85mm Jack Female Socket | Female to Female | Bulkhead | 70 GHz | Jack to Jack | RPC-1.85 to RPC-1.85 | Panel Mount | 1.85mm Jack Female Socket | Gold | 50 Ohms | Same Series | Straight |
