OSTTS08 Series

Catalog

TERM BLOCK PLUG 8POS 7.5MM

Part	Mounting Type	Voltage - UL	Material Flammability Rating	Wire Strip Length [Max]	Wire Strip Length [Min]	Housing Material	Number of Levels	Termination Style	Contact Material	Positions Per Level	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Positions	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛	Contact Mating Finish
On Shore Technology Inc. OSTTS08A15B	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.295 in	7.5 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C
On Shore Technology Inc. OSTTS08715C	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.197 in	5 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C	Green	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS08A15A	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.295 in	7.5 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C
On Shore Technology Inc. OSTTS08A15C	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.295 in	7.5 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C
On Shore Technology Inc. OSTTS08715D	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.197 in	5 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C	Green	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS08A15D	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.295 in	7.5 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C
On Shore Technology Inc. OSTTS08715B	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.197 in	5 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C	Green	0.34 mm²	2.5 mm²
On Shore Technology Inc. OSTTS08015C	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.3 in	7.62 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C

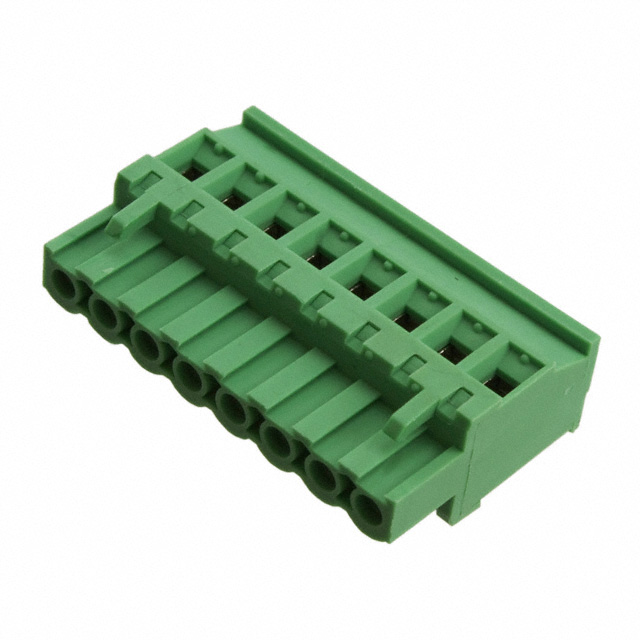

On Shore Technology Inc. OSTTS08515A	Free Hanging (In-Line)	300 V	UL94 V-0	7 mm	6 mm	Brass	1	Screw	Brass	8	24 AWG	12 AWG	8	0.2 in	5.08 mm	0.4 Nm	3.5 Lb-In	Plug Female Sockets	-30 ░C	105 ░C	Green			0.34 mm˛	2.5 mm˛
On Shore Technology Inc. OSTTS08115B	Free Hanging (In-Line)	300 V		7 mm	6 mm	Thermoplastic	1	Screw	Phosphor Bronze	8	28 AWG	16 AWG	8	0.138 in	3.5 mm	0.2 Nm	1.7 Lb-In	Plug Female Sockets	-40 °C	115 °C	Green					1.5 mm˛	Tin
