320.22 Series

Manufacturer: E-Switch

Catalog

SWITCH TACT SPST-NO 0.025A 50V

Part	Actuator Material	Switch Travel	Mechanical Life	Termination Style	Illumination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Actuator Type	Operating Force	Switch Function	Actuator Orientation	Features	Circuit	Outline [x]	Outline [y]	Contact Rating @ Voltage
E-Switch 320.22E11GRY	Polycarbonate (PC)	0.6 mm	1000000 Cycles	PC Pin	Non-Illuminated	Through Hole	-20 ░C	70 °C	12.6 mm	Square Button	135 gf	Off-Mom	Top Actuated	Gray Cap	SPST-NO	12.4 mm	12.4 mm	0.025 A
E-Switch 320.22U11RED	Polycarbonate (PC)	0.6 mm	1000000 Cycles	PC Pin	Non-Illuminated	Through Hole	-25 °C	70 °C	12.6 mm	Square Button	135 gf	Off-Mom	Top Actuated	Red Cap	SPST-NO	12.4 mm	12.4 mm	0.025 A

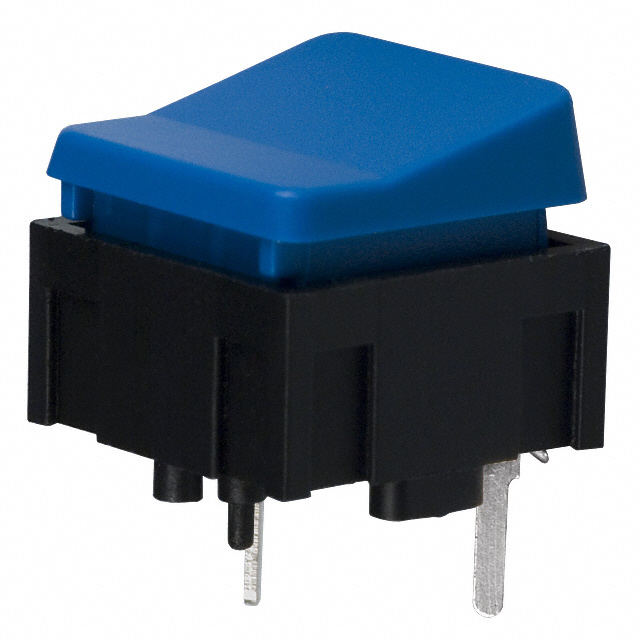

E-Switch 320.22E11BLU	Polycarbonate (PC)	0.6 mm	1000000 Cycles	PC Pin	Non-Illuminated	Through Hole	-20 ░C	70 °C	12.6 mm	Square Button	135 gf	Off-Mom	Top Actuated	Blue Cap	SPST-NO	12.4 mm	12.4 mm	0.025 A

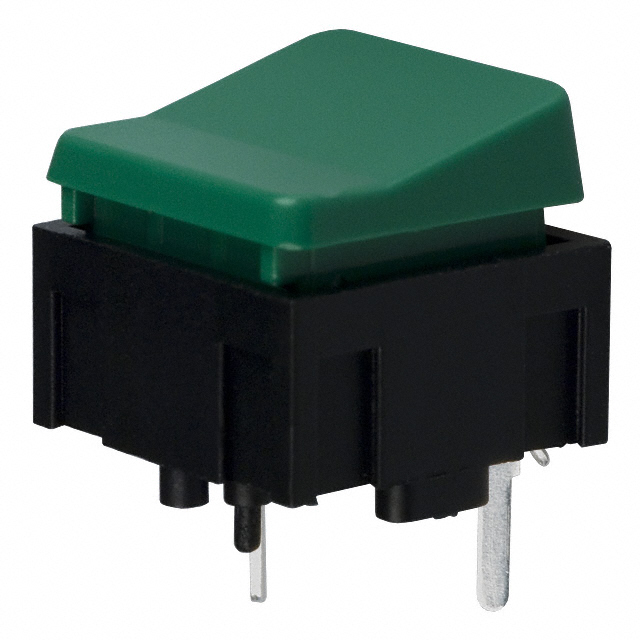

E-Switch 320.22E11GRN	Polycarbonate (PC)	0.6 mm	1000000 Cycles	PC Pin	Non-Illuminated	Through Hole	-20 ░C	70 °C	12.6 mm	Square Button	135 gf	Off-Mom	Top Actuated	Green Cap	SPST-NO	12.4 mm	12.4 mm	0.025 A
E-Switch 320.22E11RED	Polycarbonate (PC)	0.6 mm	1000000 Cycles	PC Pin	Non-Illuminated	Through Hole	-20 ░C	70 °C	12.6 mm	Square Button	135 gf	Off-Mom	Top Actuated	Red Cap	SPST-NO	12.4 mm	12.4 mm	0.025 A
E-Switch 320.22E11BLKENTER	Polycarbonate (PC)	0.6 mm	1000000 Cycles	PC Pin	Non-Illuminated	Through Hole	-20 ░C	70 °C	12.6 mm	Square Button	135 gf	Off-Mom	Top Actuated	Black Cap	SPST-NO	12.4 mm	12.4 mm	0.025 A
E-Switch 320.22E11ORG	Polycarbonate (PC)	0.6 mm	1000000 Cycles	PC Pin	Non-Illuminated	Through Hole	-20 ░C	70 °C	12.6 mm	Square Button	135 gf	Off-Mom	Top Actuated	Orange Cap	SPST-NO	12.4 mm	12.4 mm	0.025 A
