EAHE5630 Series

Catalog

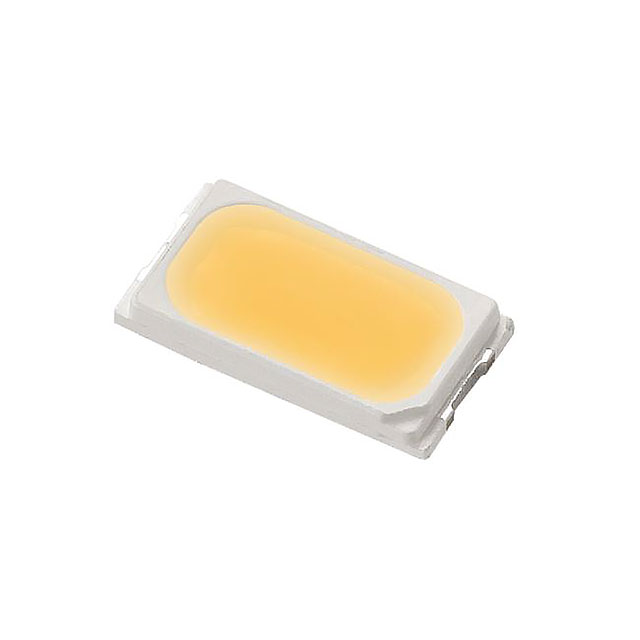

LED NEUTRAL WHT 4000K 2PLCC

Part	Thermal Resistance of Package	Color	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Viewing Angle	CCT (K)	Flux @ 25°C, Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Max [Max]	Current - Test	Supplier Device Package	Package / Case	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)
Everlight Electronics Co Ltd EAHE5630WE33	21 °C/W	Neutral White	80	5.6 mm	0.118 in	3 mm	0.22 in	Surface Mount	120 °	4000 K	33 lm	0.03 "	0.75 mm	180 mA	65 mA	2-PLCC	2212 (5630 Metric)	185 lm/W	2.75 V
Everlight Electronics Co Ltd EAHE5630WE13	21 °C/W	Warm White	80	5.6 mm	0.118 in	3 mm	0.22 in	Surface Mount	120 °	3000 K	32 lm	0.03 "	0.75 mm	180 mA	65 mA	2-PLCC	2212 (5630 Metric)	179 lm/W	2.75 V
Everlight Electronics Co Ltd EAHE5630WE43	21 °C/W	Cool White	80	5.6 mm	0.118 in	3 mm	0.22 in	Surface Mount	120 °	5000 K	34 lm	0.03 "	0.75 mm	180 mA	65 mA	2-PLCC	2212 (5630 Metric)	190 lm/W	2.75 V
Everlight Electronics Co Ltd EAHE5630WE63	21 °C/W	Cool White	80	5.6 mm	0.118 in	3 mm	0.22 in	Surface Mount	120 °	6500 K	33 lm	0.03 "	0.75 mm	180 mA	65 mA	2-PLCC	2212 (5630 Metric)	185 lm/W	2.75 V
Everlight Electronics Co Ltd EAHE5630WE53	21 °C/W	Cool White	80	5.6 mm	0.118 in	3 mm	0.22 in	Surface Mount	120 °	5700 K	34 lm	0.03 "	0.75 mm	180 mA	65 mA	2-PLCC	2212 (5630 Metric)	190 lm/W	2.75 V
