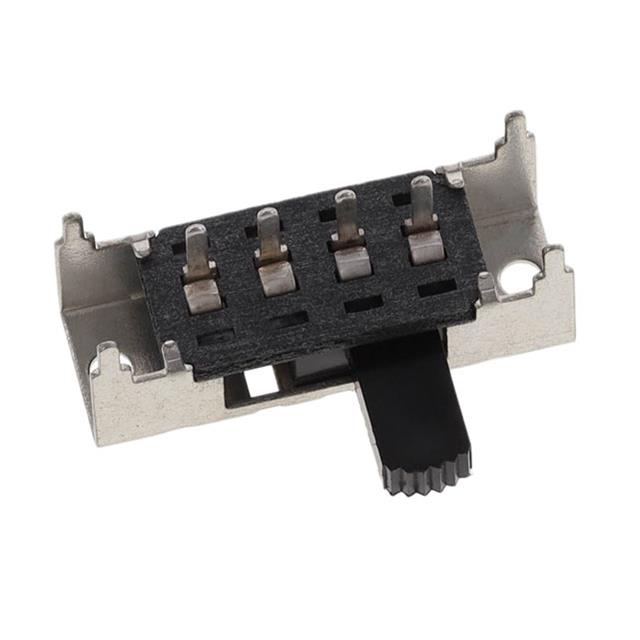

GPI-153 Series
Manufacturer: CW Industries
Beta
⌘K
SWITCH SLIDE SP3T 500MA 125V
| Part | Mechanical Life | Actuator Material | Electrical Life | Switch Travel | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Length [x] | Contact Material | Voltage Rating - DC | Voltage Rating - AC | Contact Timing | Circuit | Contact Finish | Termination Style | Switch Function | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | 500 mA | -10 °C | 104 °C | 8.33 mm | Copper | 125 VDC | 125 V | Not Specified | SP3T | Silver | PC Pin | On-On-On | Right Angle Through Hole | Standard |
 CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | 500 mA | -10 °C | 104 °C | 5.08 mm | Copper | 125 VDC | 125 V | Not Specified | SP3T | Silver | PC Pin | On-On-On | Right Angle Through Hole | Standard |
CW Industries | 10000 Steps | Nylon 6/6 Polyamide (PA66) | 6000 Cycles | 3.94 mm | 500 mA | -10 °C | 104 °C | 11.5 mm | Copper | 125 VDC | 125 V | Not Specified | SP3T | Silver | PC Pin | On-On-On | Right Angle Through Hole | Standard |
