1045 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN ADAPT JACK-JACK OSSM 50 OHM
| Part | Body Finish | Center Contact Material | Body Material | Includes | Dielectric Material | Conversion Type | Center Gender | Center Contact Plating | Style | Mounting Feature | Mounting Type | Adapter Type | Convert From (Adapter End) | Adapter Series | Convert To (Adapter End) | Impedance | Accessory Type | For Use With/Related Products | Number of Positions | Connector Style | Shield Termination | Housing Color | Connector Type | Fastening Type | Number of Ports | Contact Termination | Frequency - Max [Max] | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Cable Group | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | Beryllium Copper | Stainless Steel | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Same Series | Female to Female | Gold | Straight | Bulkhead | Panel Mount | Jack to Jack | Female Socket SSMA Jack | OSSM to OSSM | SSMA Jack Female Socket | 50 Ohms | |||||||||||||||||

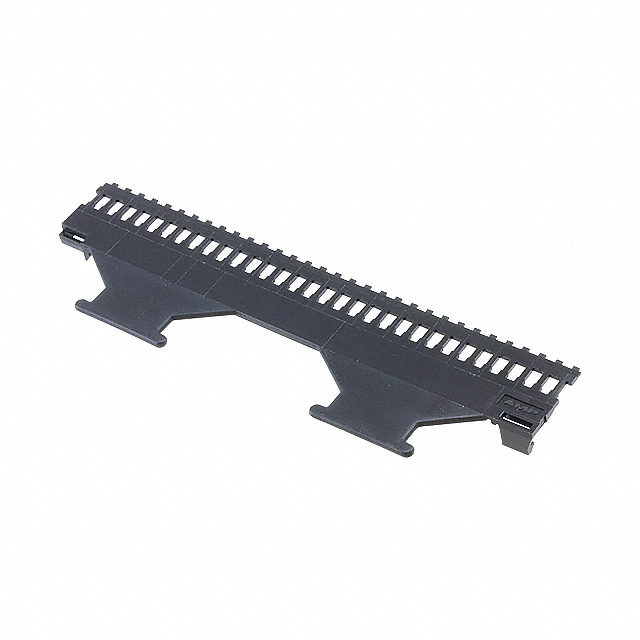

 TE Connectivity AMP Connectors | Cap (Cover) | AMPMODU Level V Series | 64 | ||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | Gold | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front or Rear Side Nut | Panel Mount | 50 Ohms | SSMA | Solder | Gold | Female Socket Jack | Threaded | 1 | Solder | 38 GHz | |||||||||||||||||
 TE Connectivity AMP Connectors | Gold | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | SSMA | Clamp | Gold | Female Socket Jack | Threaded | 1 | Crimp | 38 GHz | 170 V | 105 ░C | -65 ░C | 196 | RG-178 | ||||||||||||
TE Connectivity AMP Connectors | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | Flange | Panel Mount Right Angle | 50 Ohms | SSMA | Solder | Silver | Receptacle Female Socket | Threaded | 1 | Solder Cup | Extended Insulation | ||||||||||||||||||
TE Connectivity AMP Connectors | Gold | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Same Series | Female to Female | Gold | Straight | Free Hanging (In-Line) | Jack to Jack | Female Socket SSMA Jack | SSMA to SSMA | SSMA Jack Female Socket | ||||||||||||||||||||
TE Connectivity AMP Connectors | Gold | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | Bulkhead - Front Side Nut | Panel Mount | 50 Ohms | SSMA | Solder | Gold | Receptacle Female Socket | Threaded | 1 | Solder Cup | Extended Insulation | |||||||||||||||||
TE Connectivity AMP Connectors | Gold | Beryllium Copper | Stainless Steel | Polytetrafluoroethylene (PTFE) | Same Series | Gold | Right Angle | Free Hanging (In-Line) Right Angle | Plug to Jack | SSMA Plug Male Pin | OSSM to OSSM | SSMA Jack Female Socket | 50 Ohms | 18 GHz | 165 °C | -65 ░C | |||||||||||||||||
TE Connectivity AMP Connectors | Beryllium Copper | Stainless Steel | 1 Connector 1 Lockwasher 1 Nut | Polytetrafluoroethylene (PTFE) | Same Series | Female to Female | Gold | Straight | Bulkhead | Panel Mount | Jack to Jack | Female Socket SSMA Jack | OSSM to OSSM | SSMA Jack Female Socket | 50 Ohms | 40 GHz | 125 °C | -65 ░C |
