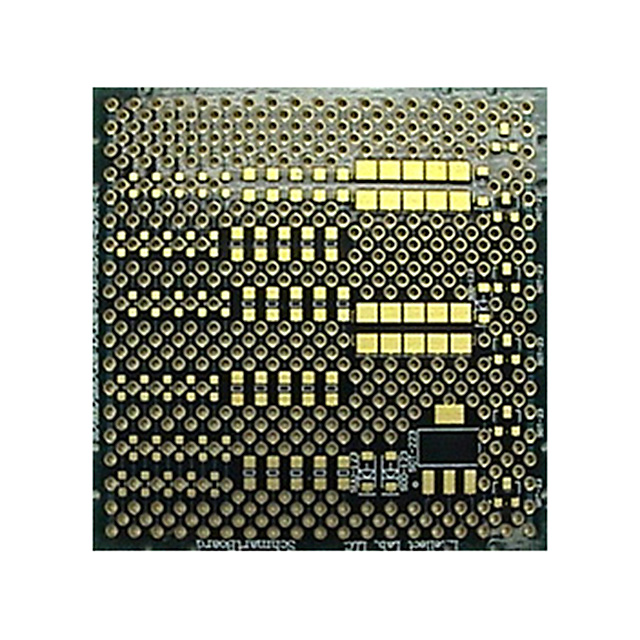

201-0003 Series
Manufacturer: Schmartboard, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
BREADBOARD GENERAL PURPOSE NPTH
| Part | Circuit Pattern | Plating | Hole Diameter | Proto Board Type | Pitch (Grid) | Pitch (Grid) | Pitch (Option 1) | Pitch (Option 2) | Size / Dimension Width | Size / Dimension Length |
|---|---|---|---|---|---|---|---|---|---|---|
 Schmartboard, Inc. | Pad Per Hole (Round) | Non-Plated Through Hole (NPTH) | 0.038 in | Breadboard General Purpose | 0.05" (1.27mm) 0.1" (2.54mm) Grid | 0.05 in 0.1 in | 0.05 in | 0.1 in | 2 in | 2 in |
