TB6586 Series

Catalog

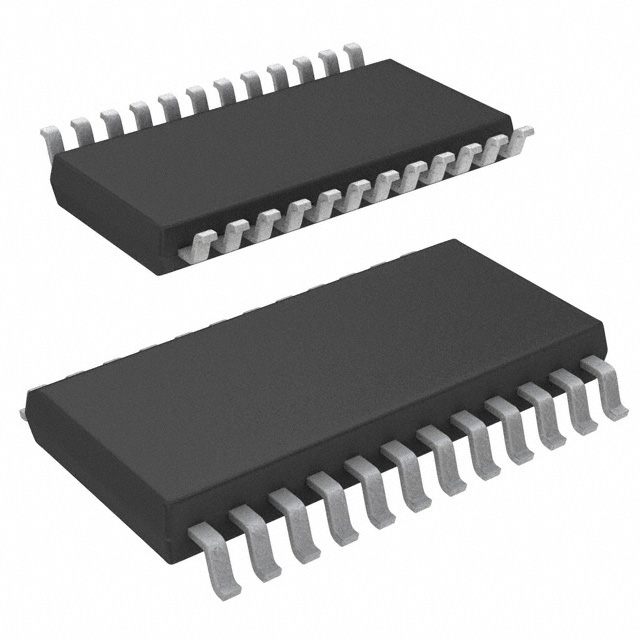

IC MOTOR CONTROLLER PAR 24SSOP

Part	Supplier Device Package	Motor Type - AC, DC	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Interface	Package / Case	Package / Case	Function	Technology	Output Configuration
Toshiba Semiconductor and Storage TB6586FG,EL,DRY	24-SSOP	Brushless DC (BLDC)	6.5 VDC	16.5 V	Surface Mount	85 °C	-30 °C	General Purpose	Parallel	0.236 in 6 mm	24-SOP	Controller - Commutation Direction Management	Bi-CMOS	Half Bridge (3)
Toshiba Semiconductor and Storage TB6586BFG,EL,DRY	24-SSOP	Brushless DC (BLDC)	6.5 VDC	16.5 V	Surface Mount	85 °C	-30 °C	General Purpose	Parallel	0.236 in 6 mm	24-SOP	Controller - Commutation Direction Management	Bi-CMOS	Half Bridge (3)
Toshiba Semiconductor and Storage TB6586AFG,EL,DRY	24-SSOP	Brushless DC (BLDC)	6.5 VDC	16.5 V	Surface Mount	85 °C	-30 °C	General Purpose	Parallel	0.236 in 6 mm	24-SOP	Controller - Commutation Direction Management	Bi-CMOS	Half Bridge (3)
Toshiba Semiconductor and Storage TB6586FG,C8,EL,HZ	24-SSOP	Brushless DC (BLDC)	6.5 VDC	16.5 V	Surface Mount	115 °C	-30 °C	General Purpose	Parallel	0.236 in 6 mm	24-SOP	Controller - Commutation Direction Management	Bi-CMOS	Half Bridge (3)
