NTLUD4C26N Series

Dual N-Channel µCool™ Power MOSFET 30V 7.3A 21mΩ

Catalog

Dual N-Channel µCool™ Power MOSFET 30V 7.3A 21mΩ

Part	Current - Continuous Drain (Id) @ 25°C	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Technology	Package / Case	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Supplier Device Package	Mounting Type	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)
ON Semiconductor NTLUD4C26NTBG	9.1 A	2.63 W	-55 °C	150 °C	2 N-Channel (Dual)	MOSFET (Metal Oxide)	6-UDFN Exposed Pad	460 pF	21 mOhm	1.1 V	6-UDFN (2x2)	Surface Mount	9 nC	30 V

Dual N-Channel µCool™ Power MOSFET 30V 7.3A 21mΩ

• UDFN Package with Exposed Drain Pads

• Ultra Low RDS(on)

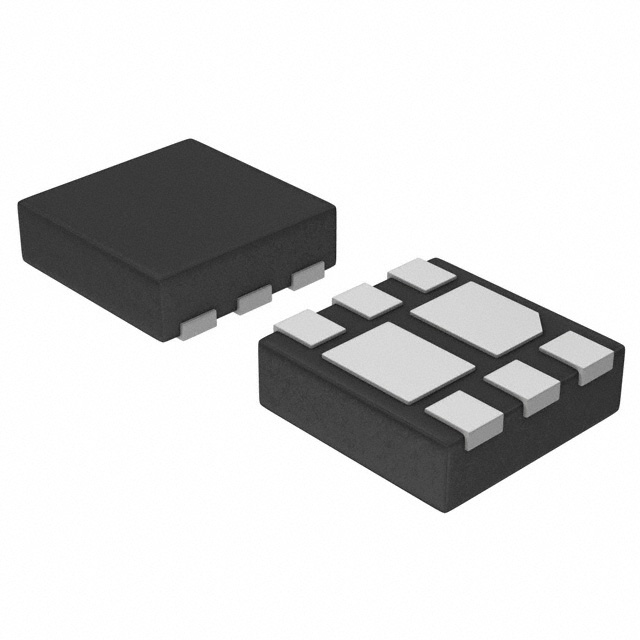

• Low Profile UDFN 2.0 x 2.0 x 0.55 mm

• RoHS Compliant

Power MOSFET 30 V, 7.3 A, Dual N−Channel, 2.0x2.0x0.55 mm µCool™ UDFN6 Package
