1277AS Series

Catalog

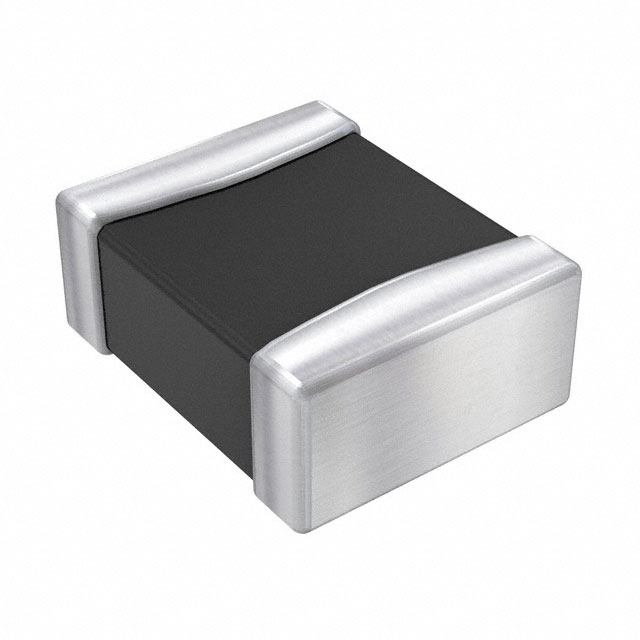

INDUCTOR POWER SHIELDED WIREWOUND 1.5UH 20% 1MHZ METAL 2.6A 0.065OHM DCR 1210 T/R

Part	Current - Saturation (Isat)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Inductance	Inductance Frequency - Test	Operating Temperature [Max]	Operating Temperature [Min]	Type	Tolerance	Material - Core	Current Rating (Amps)	DC Resistance (DCR) [Max]	Package / Case	Package / Case
Murata Electronics 1277AS-H-1R5M=P2	3 A	1.2 mm	0.047 "	Shielded	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	1.5 µH	1 MHz	85 °C	-40 C	Drum Core Wirewound	20 %	Iron Powder	2.6 A	65 mOhm	1210	3225 Metric
Murata Electronics 1277AS-H-2R2M=P2	2.6 A	1.2 mm	0.047 "	Shielded	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	2.2 µH	1 MHz	85 °C	-40 C	Drum Core Wirewound	20 %	Iron Powder	2.1 A	84 mOhm	1210	3225 Metric
Murata Electronics 1277AS-H-R47M=P2	4.7 A	1.2 mm	0.047 "	Shielded	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	470 nH	1 MHz	85 °C	-40 C	Drum Core Wirewound	20 %	Iron Powder	3.7 A	31 mOhm	1210	3225 Metric
Murata Electronics 1277AS-H-1R0M=P2	3.7 A	1.2 mm	0.047 "	Shielded	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	1 µH	1 MHz	85 °C	-40 C	Drum Core Wirewound	20 %	Iron Powder	3.1 A	45 mOhm	1210	3225 Metric
Murata Electronics 1277AS-H-R68M=P2	4.2 A	1.2 mm	0.047 "	Shielded	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	0.68 µH	1 MHz	85 °C	-40 C	Drum Core Wirewound	20 %	Iron Powder	3.5 A	35 mOhm	1210	3225 Metric
Murata Electronics 1277AS-H-6R8M=P2		1.2 mm	0.047 "	Shielded	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	6.8 µH	1 MHz	85 °C	-40 C	Drum Core Wirewound	20 %	Iron Powder	1.2 A	276 mOhm	1210	3225 Metric
Murata Electronics 1277AS-H-3R3M=P2	2.1 A	1.2 mm	0.047 "	Shielded	Surface Mount	2.5 mm	0.098 in	3.2 mm	0.126 "	3.3 µH	1 MHz	85 °C	-40 C	Drum Core Wirewound	20 %	Iron Powder	1.8 A	126 mOhm	1210	3225 Metric
