25_N-50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

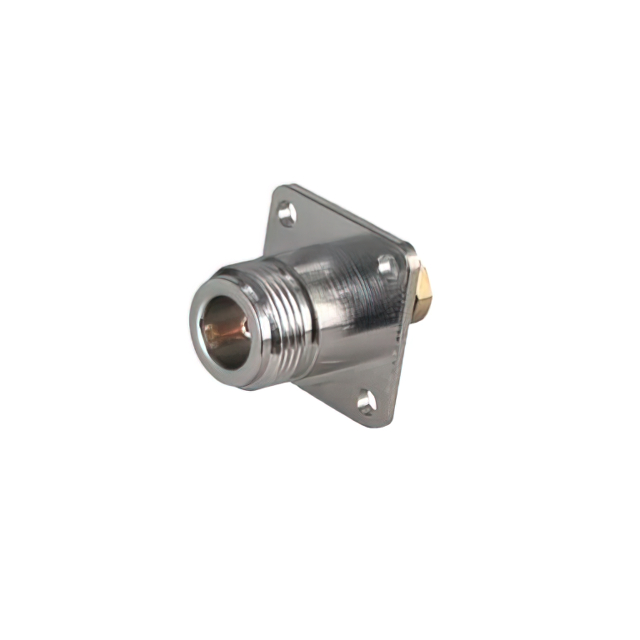

25_N-50-2-10/133_NE
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Center Contact Plating | Voltage Rating | Body Finish | Mating Cycles | Contact Termination | Impedance | Frequency - Max [Max] | Mounting Feature | Center Contact Material | Connector Style | Fastening Type | Mounting Type | Housing Color | Number of Ports | Cable Group | Connector Type | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Crimp | 50 Ohms | 11 GHz | Flange | Beryllium Copper Brass | N Type | Threaded | Panel Mount | Silver | 1 | RD-316 | Female Socket Jack | Crimp |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Crimp | 50 Ohms | 11 GHz | Flange | Beryllium Copper Brass | N Type | Threaded | Panel Mount | Silver | 1 | 188 316 RG-174 | Female Socket Jack | Crimp |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Solder | 50 Ohms | 11 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | 214 RG-213 | Female Socket Jack | Clamp |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Solder | 50 Ohms | 18 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | RG-405 (.086 Semi Rigid) | Female Socket Jack | Solder |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Crimp | 50 Ohms | 11 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | RG-214 | Female Socket Jack | Crimp |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Crimp | 50 Ohms | 11 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | Female Socket Jack | Crimp | |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Solder | 50 Ohms | 11 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | 188 316 RG-174 | Female Socket Jack | Clamp |
Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Crimp | 50 Ohms | 11 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | RG-213 | Female Socket Jack | Crimp |
 Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Crimp | 50 Ohms | 11 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | RG-58 | Female Socket Jack | Crimp |
Huber+Suhner, Inc. | -65 ░C | 165 °C | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Brass | Gold | 1000 VDC | White Bronze | 500 | Crimp | 50 Ohms | 11 GHz | Flange | Beryllium Copper | N Type | Threaded | Panel Mount | Silver | 1 | 223 RG-142 | Female Socket Jack | Crimp |
