325000 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRP 24CIRC 0.325"
| Part | Mounting Type | Material Flammability Rating | Material - Insulation | Operating Temperature | Terminal Screw Material | Pitch | Pitch | Terminal Block Type | Number of Rows | Bottom Termination | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Number of Circuits | Features | Top Termination | Voltage Rating | Current Rating (Amps) | Number of Wire Entries | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 24 | Flange | Screws | 300 VDC | 15 A | ||
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 21 | Flange | Screws | 300 VDC | 15 A | 21 | |

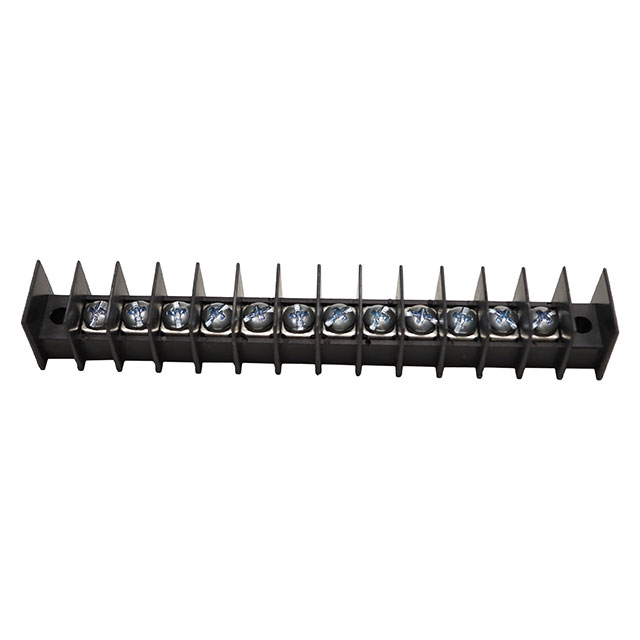

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 12 | Flange | Screws | 300 VDC | 15 A | 12 | |

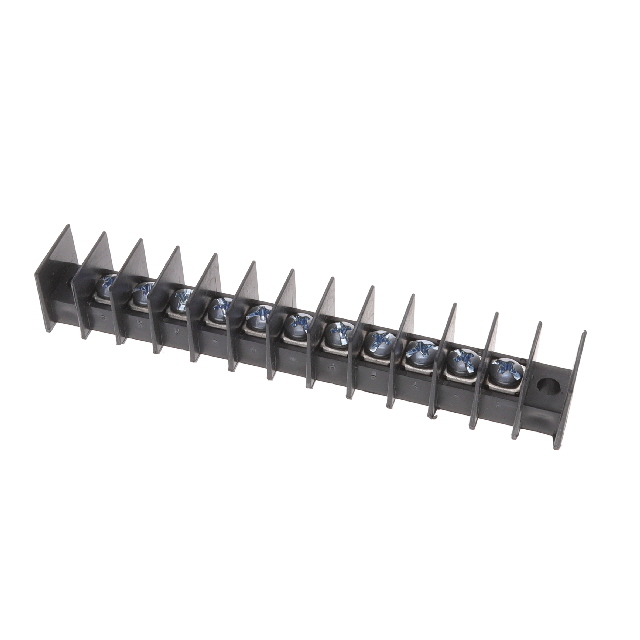

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 11 | Flange | Screws | 300 VDC | 15 A | 11 | |
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 1 | Flange | Screws | 300 VDC | 15 A | 1 | |||

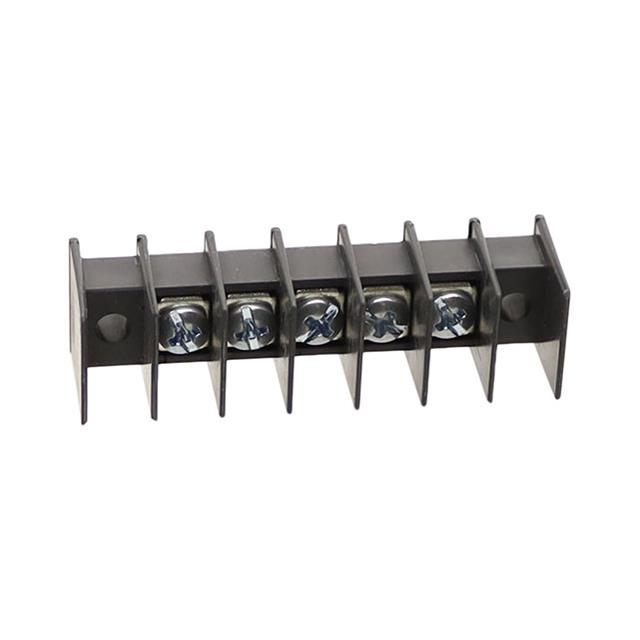

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 5 | Flange | Screws | 300 VDC | 15 A | 5 | |

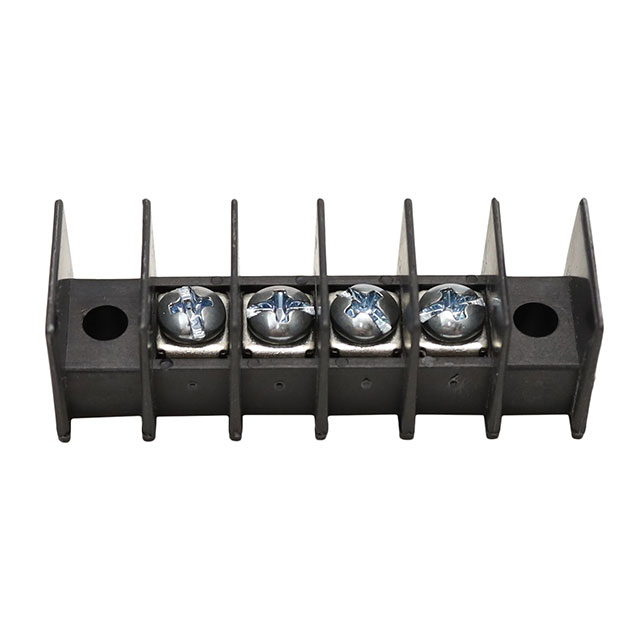

 Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 4 | Flange | Screws | 300 VDC | 15 A | 4 | |
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | Flange | Screws | 300 VDC | 15 A | 23 | 23 | |
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 25 | Flange | Screws | 300 VDC | 15 A | 25 | |
Curtis Industries | Chassis Panel | UL94 V-0 | Polypropylene (PP) | 105 C | Steel | 0.325 in | 8.26 mm | Barrier Block | 1 | Closed | 14 AWG | 22 AWG | 2 Wall (Dual) | 18 | Flange | Screws | 300 VDC | 15 A | 18 |
