CFS-0801 Series

Catalog

DIP SWITCH, 8PST-NO, 0.1A, 6VDC, SMD ROHS COMPLIANT: YES

Part	Contact Finish	Current Rating (Amps)	Mounting Type	Electrical Life	Body Material	Voltage Rating	Pitch [x]	Pitch	Pitch [x]	Length	Length	Number of Positions	Contact Material	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Height Above Board	Height Above Board	Actuator Level
Nidec Components Corporation CFS-0801TB	Gold	100 mA	Surface Mount	1000 Cycles	Polyphenylene Sulfide (PPS)	6 VDC	0.1 in	Full	2.54 mm	0.858 "	21.8 mm	8	Copper Alloy	Slide (Standard)	Gull Wing	85 °C	-40 °C	SPST	3.7 mm	0.146 in	Flush Recessed

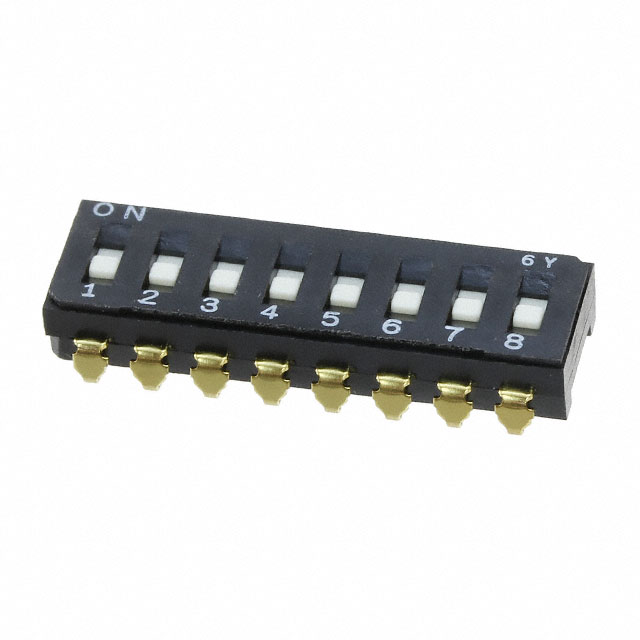

Nidec Components Corporation CFS-0801MA	Gold	100 mA	Surface Mount	1000 Cycles	Polyphenylene Sulfide (PPS)	6 VDC	0.1 in	Full	2.54 mm	0.858 "	21.8 mm	8	Copper Alloy	Slide (Standard)	J Lead	85 °C	-40 °C	SPST	3.9 mm	0.154 in	Flush Recessed
Nidec Components Corporation CFS-0801TA	Gold	100 mA	Surface Mount	1000 Cycles	Polyphenylene Sulfide (PPS)	6 VDC	0.1 in	Full	2.54 mm	0.858 "	21.8 mm	8	Copper Alloy	Slide (Standard)	J Lead	85 °C	-40 °C	SPST	3.9 mm	0.154 in	Flush Recessed
Nidec Components Corporation CFS-0801MC	Gold	100 mA	Through Hole	1000 Cycles	Polyphenylene Sulfide (PPS)	6 VDC	0.1 in	Full	2.54 mm	0.858 "	21.8 mm	8	Copper Alloy	Slide (Standard)	PC Pin	85 °C	-40 °C	SPST	4.5 mm	0.177 in	Flush Recessed
