R31707 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

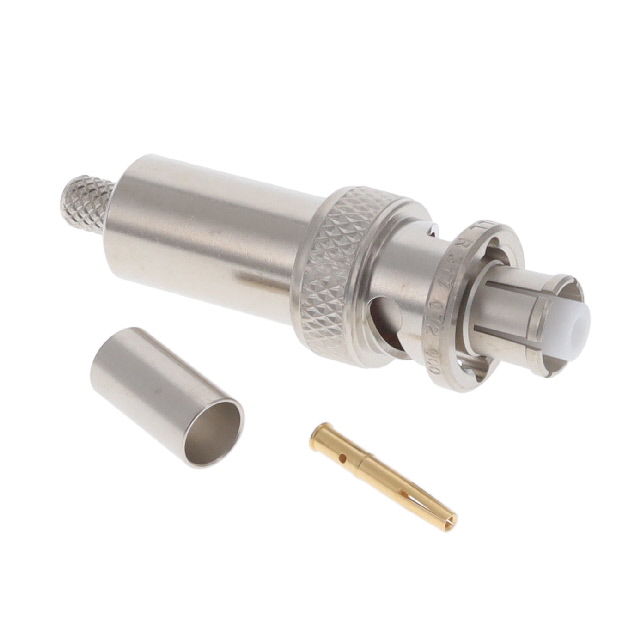

SHV / STRAIGHT FEMALE CRIMP TYPE
| Part | Center Contact Plating | Dielectric Material | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Finish | Housing Color | Number of Ports | Connector Type | Contact Termination | Mounting Type | Center Contact Material | Impedance | Cable Group | Cable Group | Fastening Type | Shield Termination | Frequency - Max [Max] | Connector Style | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 500 | Nickel | Silver | 1 | Female Socket Jack | Crimp | Free Hanging (In-Line) | Beryllium Copper | 50 Ohms | RG-59 | 62 | Bayonet Lock | Crimp | 2 GHz | SHV | |
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Brass | -65 ░C | 165 °C | 500 | Nickel | Silver | 1 | Female Socket Plug | Crimp | Free Hanging (In-Line) | Beryllium Copper Brass | 50 Ohms | RG-58 | 141 | Bayonet Lock | Crimp | 2 GHz | SHV | 1 Connector 1 Contact 1 Ferrule |
