68422 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

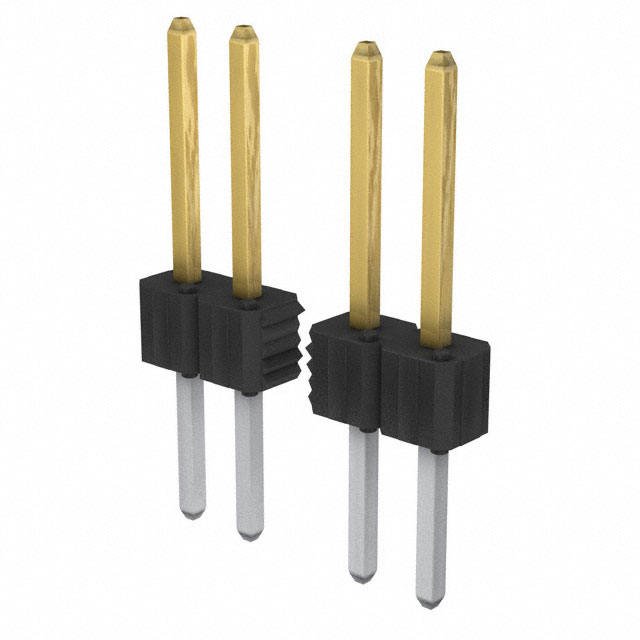

BERGSTIK II 100CC SR ST-STRAIGHT
| Part | Contact Shape | Contact Length - Post | Contact Length - Post | Contact Material | Number of Positions | Insulation Color | Voltage Rating | Overall Contact Length | Overall Contact Length | Termination | Shrouding | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Fastening Type | Contact Type | Contact Length - Mating [x] | Contact Length - Mating [x] | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Connector Type | Material Flammability Rating | Mounting Type | Number of Positions Loaded | Number of Rows | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 29 | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | |
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 28 | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | |
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | ||
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 12 | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | |
 Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 10 | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | |
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 9 | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | |
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 11 | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | |

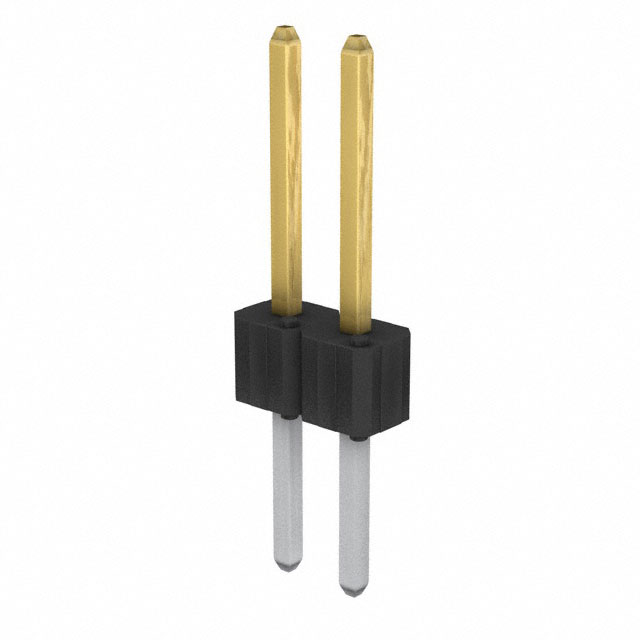

 Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 2 | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 30 Áin | 0.76 Ám | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | |
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 15 µin | 0.38 µm | Gold or Gold GXT™ | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | ||
Amphenol ICC (FCI) | Square | 5.4 mm | 0.213 in | Phosphor Bronze | 22 positions | Black | 110 VDC | 0.631 " | 16.03 mm | Solder | Unshrouded | 5 A | 100 çin | 2.54 çm | Push-Pull | Male Pin | 0.318 " | 8.08 mm | 0.1 in | 2.54 mm | 0.1 in | 2.54 mm | Header | UL94 V-0 | Through Hole | All | 1 | Tin |
