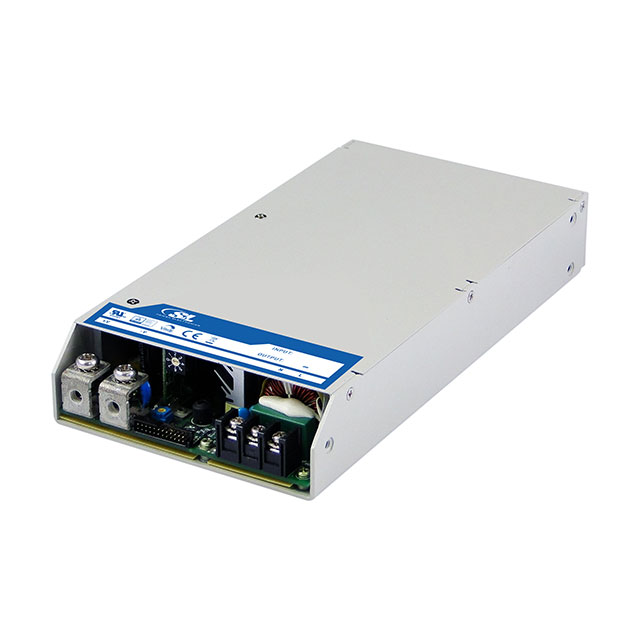

TF800A12 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 66.7A 800W 12-PIN
| Part | Efficiency | Number of Outputs | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Approval Agency | Features | Voltage - Isolation | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Voltage - Output 1 | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 89 % | 1 | 800 W | 5 in | 248.9 mm | 5 in | 9.8 in | 40.6 mm | 1.6 " | CE cURus TUV | Adjustable Output DC Input Capable I2C Interface Load Sharing PFC Remote On/Off Remote Sense Standby Output | 3000 V | Chassis Mount | 100 VAC 127 VDC | 240 VAC 370 VDC | Enclosed | 60 °C | -25 °C | ITE (Commercial) | 12 V | 66.7 A |
