9962 Series
Manufacturer: Belden Inc.
Beta
⌘K

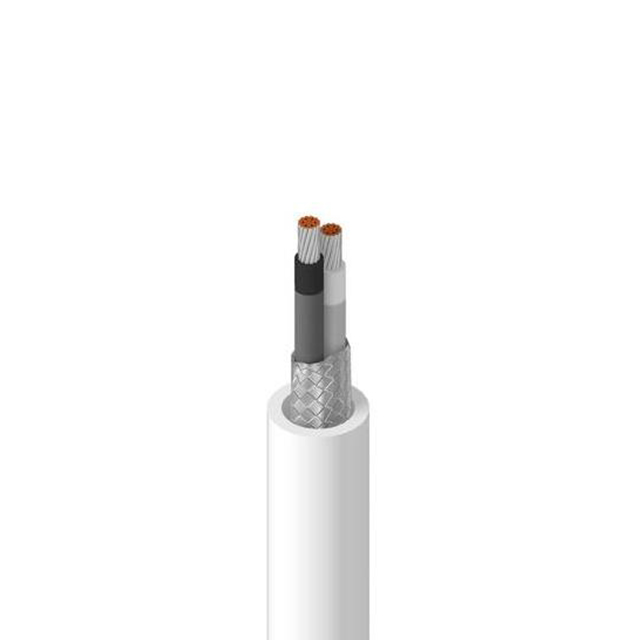

CABLE 2COND 20AWG WHT SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Conductor Insulation | Conductor Insulation | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Type | Conductor Material | Cable Type | Jacket Color | Number of Conductors | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 90 % | Polyamide (PA) | Nylon | Poly-Vinyl Chloride (PVC) | Communications | 0.406 mm | 0.016 in | 20 AWG | 0.192 in | 4.88 mm | 19 | 32 AWG | Poly-Vinyl Chloride (PVC) | Braid | Copper Tinned | Multi-Conductor | White | 2 | 304.8 m | 1000 ft | -20 ░C | 105 ░C |
