UCC28742 Series
Manufacturer: Texas Instruments
Beta
⌘K

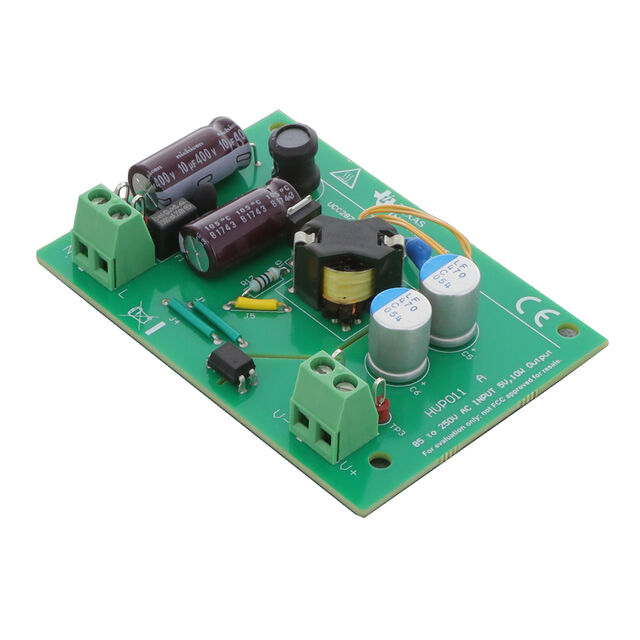

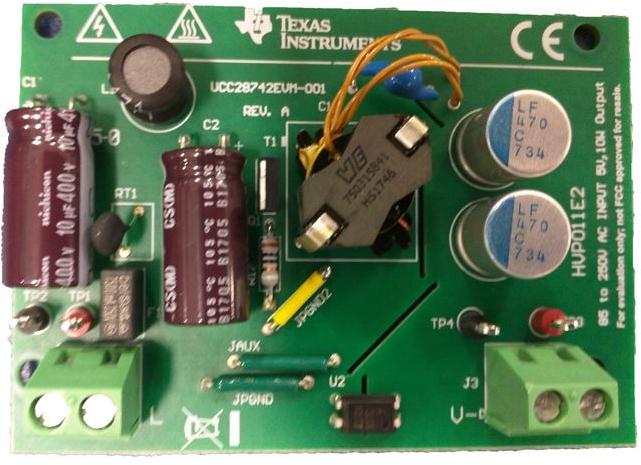

UCC28742 AC TO DC SWITCHING CONVERTER 4.75V TO 5.25V OUTPUT EVALUATION BOARD
| Part | Board Type | Outputs and Type | Outputs and Type | Supplied Contents | Current - Output | Regulator Topology | Main Purpose | Utilized IC / Part | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Contents | Voltage - Start Up | Frequency - Switching | Output Isolation | Fault Protection | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Supplier Device Package | Internal Switch(s) | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Duty Cycle | Mounting Type | Topology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Fully Populated | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | 2 A | Flyback | AC/DC Primary Side | UCC28742 | 5 V | 265 VAC | 85 VAC | Board(s) | ||||||||||||||

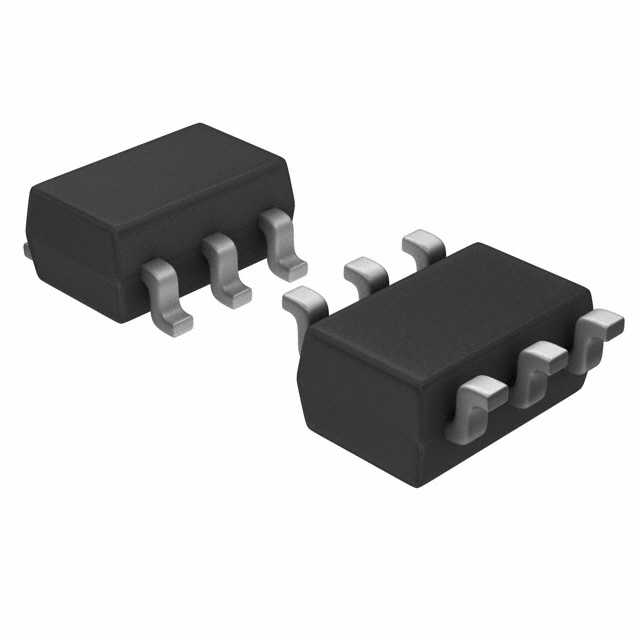

 Texas Instruments | 21.6 V | 80 kHz | Isolated | Current Limiting Over Voltage Short Circuit | 35 V | 9 V | SOT-23-6 | 125 °C | -40 C | SOT-23-6 | 99 % | Surface Mount | Flyback | |||||||||||||
 Texas Instruments | 21.6 V | 80 kHz | Isolated | Current Limiting Over Voltage Short Circuit | 35 V | 9 V | SOT-23-6 | 125 °C | -40 C | SOT-23-6 | 99 % | Surface Mount | Flyback |
