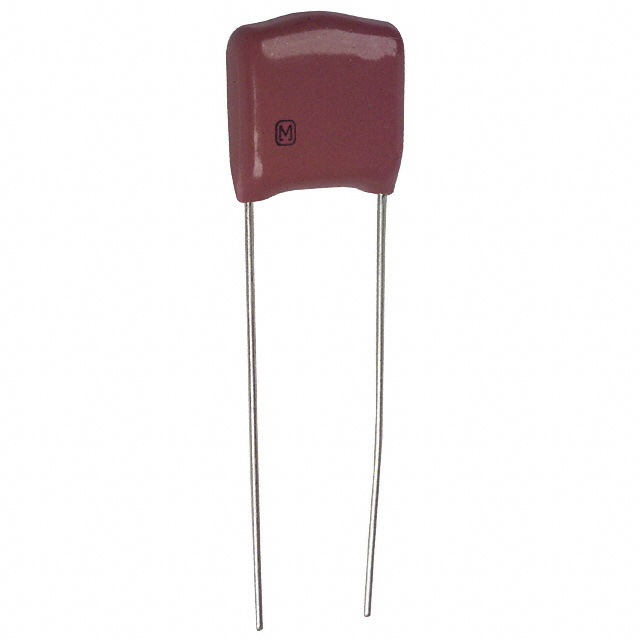

ECQ-E2274 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.27UF 5% 250VDC RADIAL

Part	Applications	Lead Spacing	Lead Spacing	Package / Case	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Capacitance	Termination	Dielectric Material	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2274JF	General Purpose	0.394 in	10 mm	Radial	Through Hole	12 mm	6 mm	0.236 "	0.472 in	-40 C	105 ░C	250 V	0.492 in	12.5 mm	0.27 µF	PC Pins	Polyester Metallized	5 %

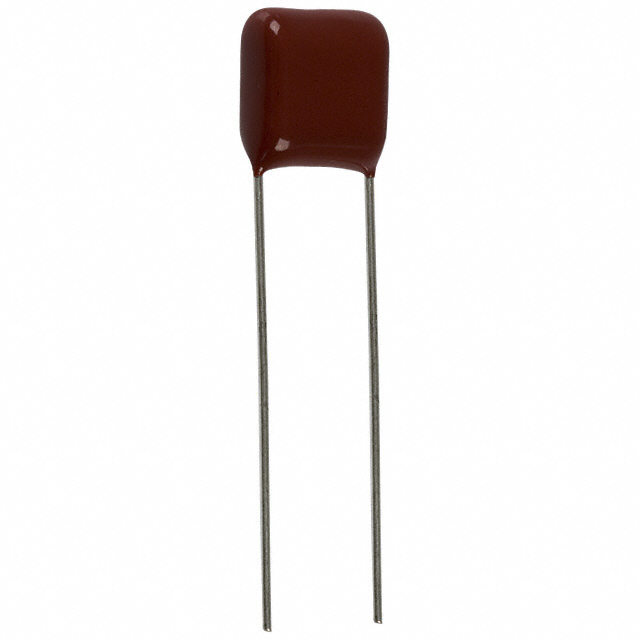

Panasonic Electronic Components ECQ-E2274KB	General Purpose	0.295 in	7.5 mm	Radial	Through Hole	10.3 mm	5.9 mm	0.232 in	0.406 in	-40 C	105 ░C	250 V	0.465 in	11.8 mm	0.27 µF	PC Pins	Polyester Metallized	10 %
Panasonic Electronic Components ECQ-E2274RKF	General Purpose	0.394 in	10 mm	Radial	Through Hole	12 mm	6 mm	0.236 "	0.472 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	10 %	0.65 in	16.5 mm
Panasonic Electronic Components ECQ-E2274KF3	General Purpose	0.197 "	5 mm	Radial	Through Hole	12 mm	6 mm	0.236 "	0.472 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	10 %	0.65 in	16.5 mm
Panasonic Electronic Components ECQ-E2274JBB	General Purpose	0.197 "	5 mm	Radial	Through Hole	10.3 mm	5.9 mm	0.232 in	0.406 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	5 %	0.622 "	15.8 mm
Panasonic Electronic Components ECQ-E2274KBB	General Purpose	0.197 "	5 mm	Radial	Through Hole	10.3 mm	5.9 mm	0.232 in	0.406 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	10 %	0.622 "	15.8 mm
Panasonic Electronic Components ECQ-E2274KB3	General Purpose	0.197 "	5 mm	Radial	Through Hole	10.3 mm	5.9 mm	0.232 in	0.406 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	10 %	0.622 "	15.8 mm
Panasonic Electronic Components ECQ-E2274KFW	General Purpose	0.394 in	10 mm	Radial	Through Hole	12 mm	6 mm	0.236 "	0.472 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	10 %	0.65 in	16.5 mm
Panasonic Electronic Components ECQ-E2274JFB	General Purpose	0.394 in	10 mm	Radial	Through Hole	12 mm	6 mm	0.236 "	0.472 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	5 %	0.65 in	16.5 mm
Panasonic Electronic Components ECQ-E2274JB3	General Purpose	0.197 "	5 mm	Radial	Through Hole	10.3 mm	5.9 mm	0.232 in	0.406 in	-40 C	105 ░C	250 V			0.27 µF	PC Pins	Polyester Metallized	5 %	0.622 "	15.8 mm
