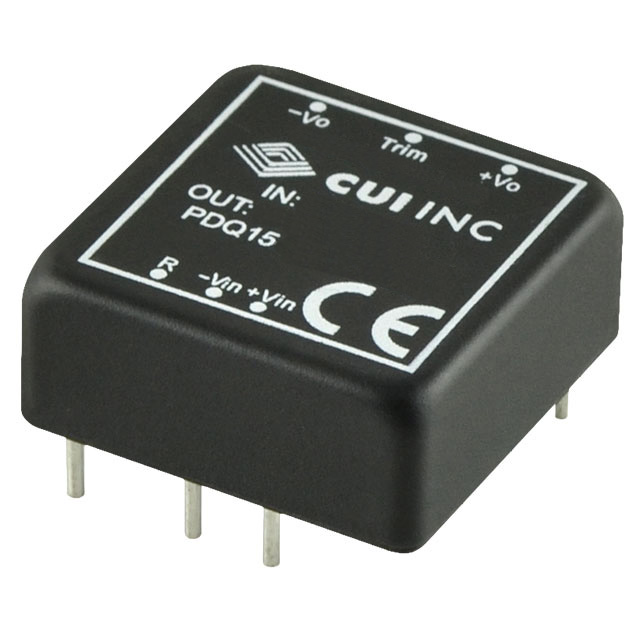

PDQ15 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER +/-5V 15W
| Part | Number of Outputs | Package / Case | Power (Watts) | Voltage - Input (Min) [Min] | Control Features | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) | Voltage - Isolation | Applications | Voltage - Output 1 | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Type | Efficiency | Voltage - Input (Max) [Max] | Voltage - Output 2 | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 2 | 6-DIP Module | 15 W | 9 V | Active High Enable | Through Hole | -40 C | 105 ░C | 1.5 A | 1.5 kV | ITE (Commercial) | 5 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 85 % | 36 V | -5 V | |
CUI Inc. | 2 | 6-DIP Module | 15 W | 18 V | Active High Enable | Through Hole | -40 C | 105 ░C | 500 mA | 1.5 kV | ITE (Commercial) | 15 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 87 % | 75 V | -15 V | |
CUI Inc. | 1 | 6-DIP Module | 15 W | 9 V | Active High Enable | Through Hole | -40 C | 105 ░C | 1.5 kV | ITE (Commercial) | 15 V | OCP OVP Remote On/Off SCP UVLO | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | Isolated Module | 88 % | 36 V | 1 A |
