PRPC026 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 52POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Overall Contact Length | Overall Contact Length | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Length - Mating | Contact Length - Mating | Insulation Color | Insulation Material | Contact Material | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Contact Finish - Mating | Number of Rows [custom] | Contact Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Number of Positions Loaded | Connector Type | Style | Current Rating (Amps) | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Positions | Contact Shape | Contact Finish - Post | Termination | Overall Contact Length [x] | Overall Contact Length [x] | Number of Rows | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | Flash | 0.637 in | 16.17 mm | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | 8.08 mm | 0.318 in | Black | Polybutylene Terephthalate (PBT) | Brass | 5.58 mm | 0.22 in | UL94 V-0 | Gold | 2 | Male Pin | Through Hole | -40 C | 105 ░C | Push-Pull | All | Header Breakaway | Board to Board Cable | 3 A | Unshrouded | 0.1 in | 2.54 mm | 52 | Square | Gold | Solder | ||||

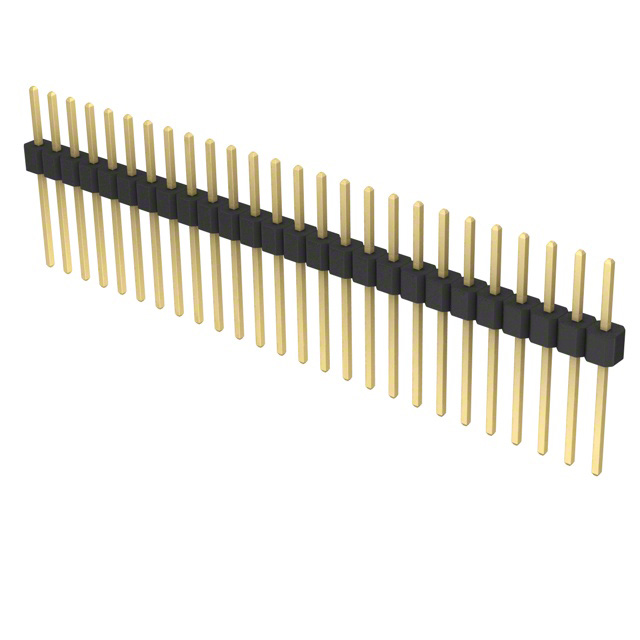

 Sullins Connector Solutions | Flash | Flash | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | 8.08 mm | 0.318 in | Black | Polybutylene Terephthalate (PBT) | Brass | 3.05 mm | 0.12 in | UL94 V-0 | Gold | Male Pin | Through Hole | -40 C | 105 ░C | Push-Pull | All | Header Breakaway | Board to Board Cable | 3 A | Unshrouded | 26 | Square | Gold | Solder | 13.63 mm | 0.537 in | 1 | ||||||
 Sullins Connector Solutions | Flash | Flash | 11.39 mm | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | 5.84 mm | 0.23 in | Black | Polybutylene Terephthalate (PBT) | Brass | 3.05 mm | 0.12 in | UL94 V-0 | Gold | Male Pin | Through Hole | -40 C | 105 ░C | Push-Pull | All | Header Breakaway | Board to Board Cable | 3 A | Unshrouded | 26 | Square | Gold | Solder | 1 | 0.448 in | ||||||

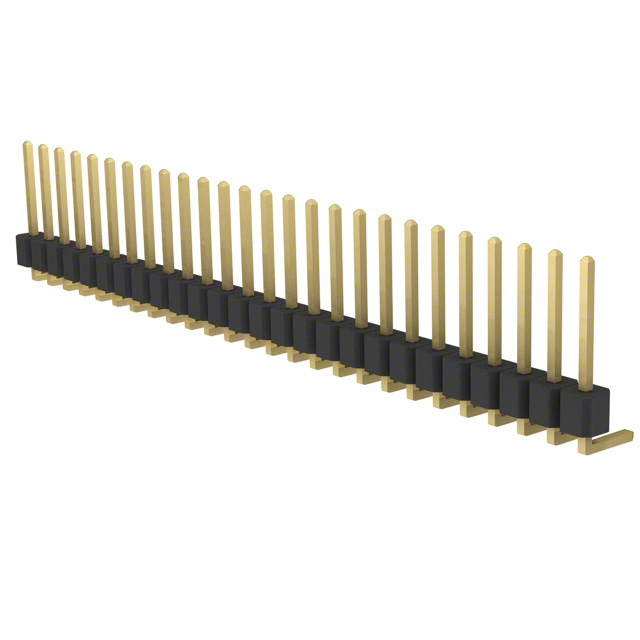

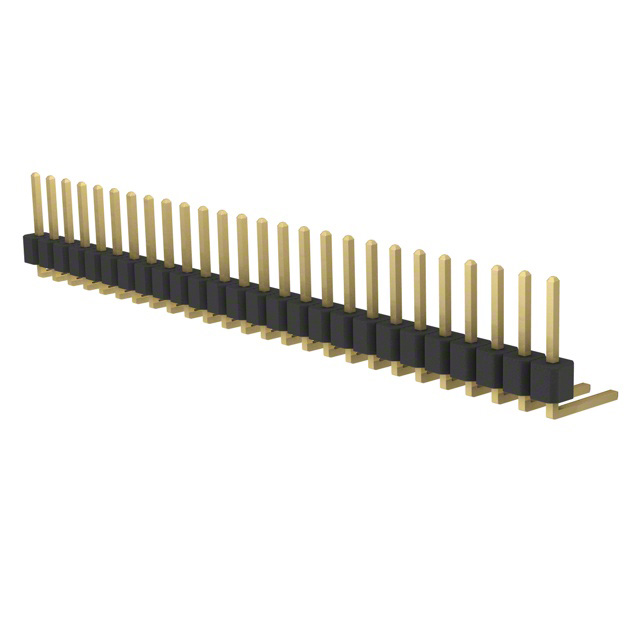

 Sullins Connector Solutions | Flash | Flash | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | 8.08 mm | 0.318 in | Black | Polybutylene Terephthalate (PBT) | Brass | 3.05 mm | 0.12 in | UL94 V-0 | Gold | Male Pin | Right Angle Through Hole | -40 C | 105 ░C | Push-Pull | All | Header Breakaway | Board to Board Cable | 3 A | Unshrouded | 26 | Square | Gold | Solder | 1 | ||||||||
 Sullins Connector Solutions | Flash | Flash | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | 5.84 mm | 0.23 in | Black | Polybutylene Terephthalate (PBT) | Brass | 5.58 mm | 0.22 in | UL94 V-0 | Gold | Male Pin | Right Angle Through Hole | -40 C | 105 ░C | Push-Pull | All | Header Breakaway | Board to Board Cable | 3 A | Unshrouded | 26 | Square | Gold | Solder | 1 | ||||||||
 Sullins Connector Solutions | Flash | Flash | 11.39 mm | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | 5.84 mm | 0.23 in | Black | Polybutylene Terephthalate (PBT) | Brass | 3.05 mm | 0.12 in | UL94 V-0 | Gold | 2 | Male Pin | Through Hole | -40 C | 105 ░C | Push-Pull | All | Header Breakaway | Board to Board Cable | 3 A | Unshrouded | 0.1 in | 2.54 mm | 52 | Square | Gold | Solder | 0.448 in | ||||
 Sullins Connector Solutions | Flash | Flash | 19.01 mm | 0.1 " | 2.54 mm | 0.098 " | 2.5 mm | 5.84 mm | 0.23 in | Black | Polybutylene Terephthalate (PBT) | Brass | 10.67 mm | 0.42 in | UL94 V-0 | Gold | Male Pin | Through Hole | -40 C | 105 ░C | Push-Pull | All | Header Breakaway | Board to Board Cable | 3 A | Unshrouded | 26 | Square | Gold | Solder | 1 | 0.748 in |
