XPLBWT Series
Manufacturer: New Energy
Beta
⌘K

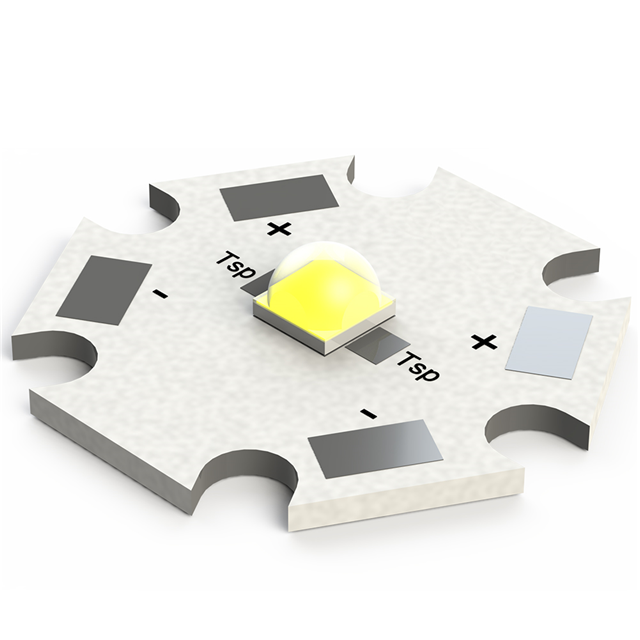

LED MOD XP-L2 WHT STARBRD 2700K
| Part | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | CCT (K) | CCT (K) | Viewing Angle | Lens Type | Color | Type | Size / Dimension [diameter] | CRI (Color Rendering Index) | Lumens/Watt @ Current - Test | Configuration | Temperature - Test | Current - Test | Luminous Flux @ Current/Temperature [Min] | Luminous Flux @ Current/Temperature [Max] | Luminous Flux @ Current/Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 New Energy | 2.82 V | 3 A | 2700 K | 3-Step MacAdam Ellipse | 125 ° | Domed | Warm White | LED Module | 19.89 mm | 80 | 138 lm/W | Starboard | 85 °C | 1.05 A | 400 lm | 420 lm | |
New Energy | 2.82 V | 3 A | 6500 K | 125 ° | Domed | Cool White | LED Module | 19.89 mm | 70 | 159 lm/W | Starboard | 85 °C | 1.05 A | 460 lm | 480 lm | 470 lm | |
New Energy | 2.82 V | 3 A | 4000 K | 125 ° | Domed | Neutral White | LED Module | 19.89 mm | 70 | 165 lm/W | Starboard | 85 °C | 1.05 A | 480 lm | 500 lm | 490 lm |
