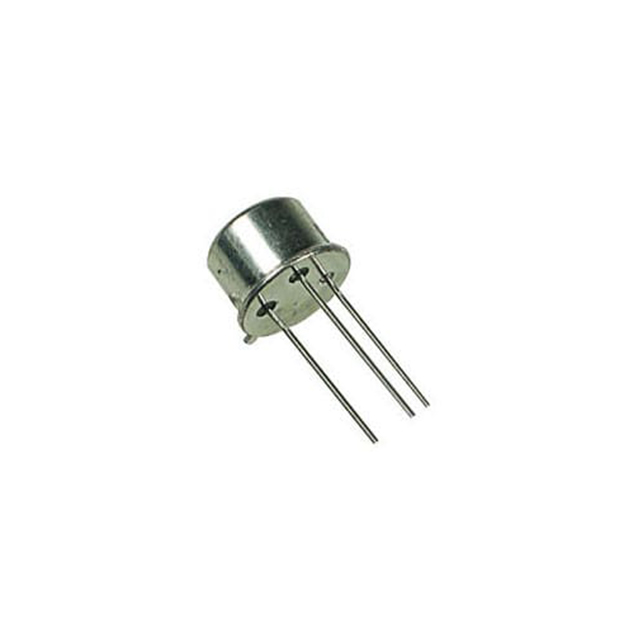

2N2329 Series
Manufacturer: Solid State Inc.
Beta
⌘K
SCR 1.6 AMP 400 V TO39
| Part | Current - Off State (Max) | Voltage - Off State | Current - Hold (Ih) (Max) | Current - Non Rep. Surge Frequencies | Current - Non Rep. Surge Type | Current - Non Rep. Surge (Itsm) | Operating Temperature (Min) | Operating Temperature (Max) | Mounting Type | Package Name | Voltage - Gate Trigger (Vgt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (Max) | Current - On State (It (RMS)) (Max) | Current - Gate Trigger (Igt) (Max) | SCR Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Solid State Inc. | 10 µA | 400 V | 2 mA | 50Hz 60Hz | Itsm | 15 A | -65 °C | 125 °C | Through Hole | TO-5 | 800 mV | 2.2 V | 1.6 A | 1.6 A | 200 µA | Standard Recovery | TO-205AA TO-5-3 Metal Can |
