TPA0211 Series

2-W, mono, analog input Class-AB audio amplifier

Catalog

2-W, mono, analog input Class-AB audio amplifier

Part	Mounting Type	Max Output Power x Channels @ Load	Type	Package / Case	Package / Case [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Supplier Device Package	Supplied Contents	Amplifier Type	Board Type	Utilized IC / Part
Texas Instruments TPA0211DGNG4	Surface Mount	2 W 92 mW	Class AB	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	85 °C	-40 °C	2.5 V	5.5 V	1-Channel (Mono) with Mono Headphones	8-HVSSOP
Texas Instruments TPA0211DGN	Surface Mount	2 W 92 mW	Class AB	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	85 °C	-40 °C	2.5 V	5.5 V	1-Channel (Mono) with Mono Headphones	8-HVSSOP

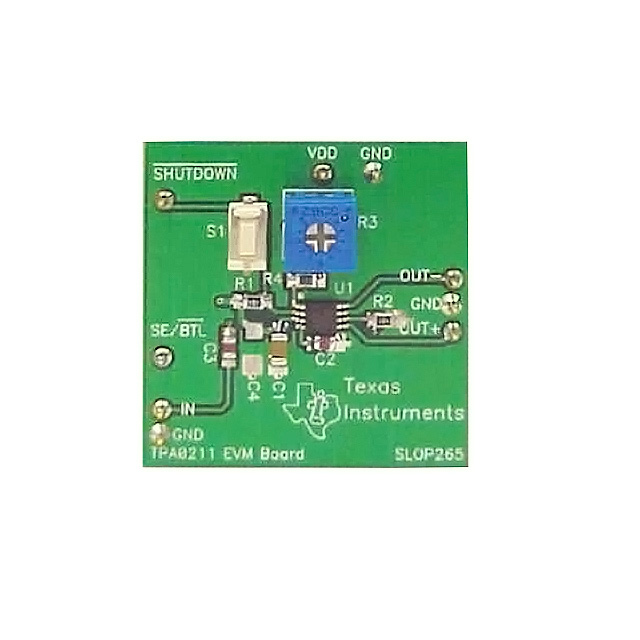

Texas Instruments TPA0211EVM		2 W 92 mW						2.5 V	5.5 V	1-Channel (Mono) with Mono Headphones		Board(s)	Class AB	Fully Populated	TPA0211
Texas Instruments TPA0211DGNR	Surface Mount	2 W 92 mW	Class AB	8-MSOP 8-TSSOP Exposed Pad	0.118 in 3 mm	85 °C	-40 °C	2.5 V	5.5 V	1-Channel (Mono) with Mono Headphones	8-HVSSOP

Catalog

2-W, mono, analog input Class-AB audio amplifier

Key Features

• 2 W Into 4 Ω From 5-V Supply0.6 W Into 4 Ω From 3-V SupplyWide Power Supply Compatibility: 3 V to 5 VLow Supply Current:4 mA Typical at 5 V4 mA Typical at 3 VShutdown Control: 1 µA TypicalShutdown Pin Is TTL Compatible–40°C to 85°C Operating Temperature RangeSpace-Saving, Thermally-Enhanced MSOP-PowerPAD™ Packaging2 W Into 4 Ω From 5-V Supply0.6 W Into 4 Ω From 3-V SupplyWide Power Supply Compatibility: 3 V to 5 VLow Supply Current:4 mA Typical at 5 V4 mA Typical at 3 VShutdown Control: 1 µA TypicalShutdown Pin Is TTL Compatible–40°C to 85°C Operating Temperature RangeSpace-Saving, Thermally-Enhanced MSOP-PowerPAD™ Packaging

Description

The TPA0211 is a 2-W mono bridge-tied-load (BTL) amplifier designed to drive speakers with as low as 4-Ω impedance. The device is ideal for small wireless communicators, notebook PCs, PDAs, anyplace a mono speaker and stereo headphones are required. From a 5-V supply, the TPA0211 can deliver 2 W of power into a 4-Ω speaker. The gain of the input stage is set by the user-selected input resistor and a 50-kΩ internal feedback resistor (AV= –RF/ RI). The power stage is internally configured with a gain of –1.25 V/V in SE mode, and –2.5 V/V in BTL mode. Thus, the overall gain of the amplifier is –62.5 kΩ/RIin SE mode and –125 kΩ/RIin BTL mode. The input terminals are high-impedance CMOS inputs, and can be used as summing nodes. The TPA0211 is available in the 8-pin thermally-enhanced MSOP-PowerPAD package (DGN) and operates over an ambient temperature range of –40°C to 85°C. The TPA0211 is a 2-W mono bridge-tied-load (BTL) amplifier designed to drive speakers with as low as 4-Ω impedance. The device is ideal for small wireless communicators, notebook PCs, PDAs, anyplace a mono speaker and stereo headphones are required. From a 5-V supply, the TPA0211 can deliver 2 W of power into a 4-Ω speaker. The gain of the input stage is set by the user-selected input resistor and a 50-kΩ internal feedback resistor (AV= –RF/ RI). The power stage is internally configured with a gain of –1.25 V/V in SE mode, and –2.5 V/V in BTL mode. Thus, the overall gain of the amplifier is –62.5 kΩ/RIin SE mode and –125 kΩ/RIin BTL mode. The input terminals are high-impedance CMOS inputs, and can be used as summing nodes. The TPA0211 is available in the 8-pin thermally-enhanced MSOP-PowerPAD package (DGN) and operates over an ambient temperature range of –40°C to 85°C.
