CHAMP .8 mm Connector Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

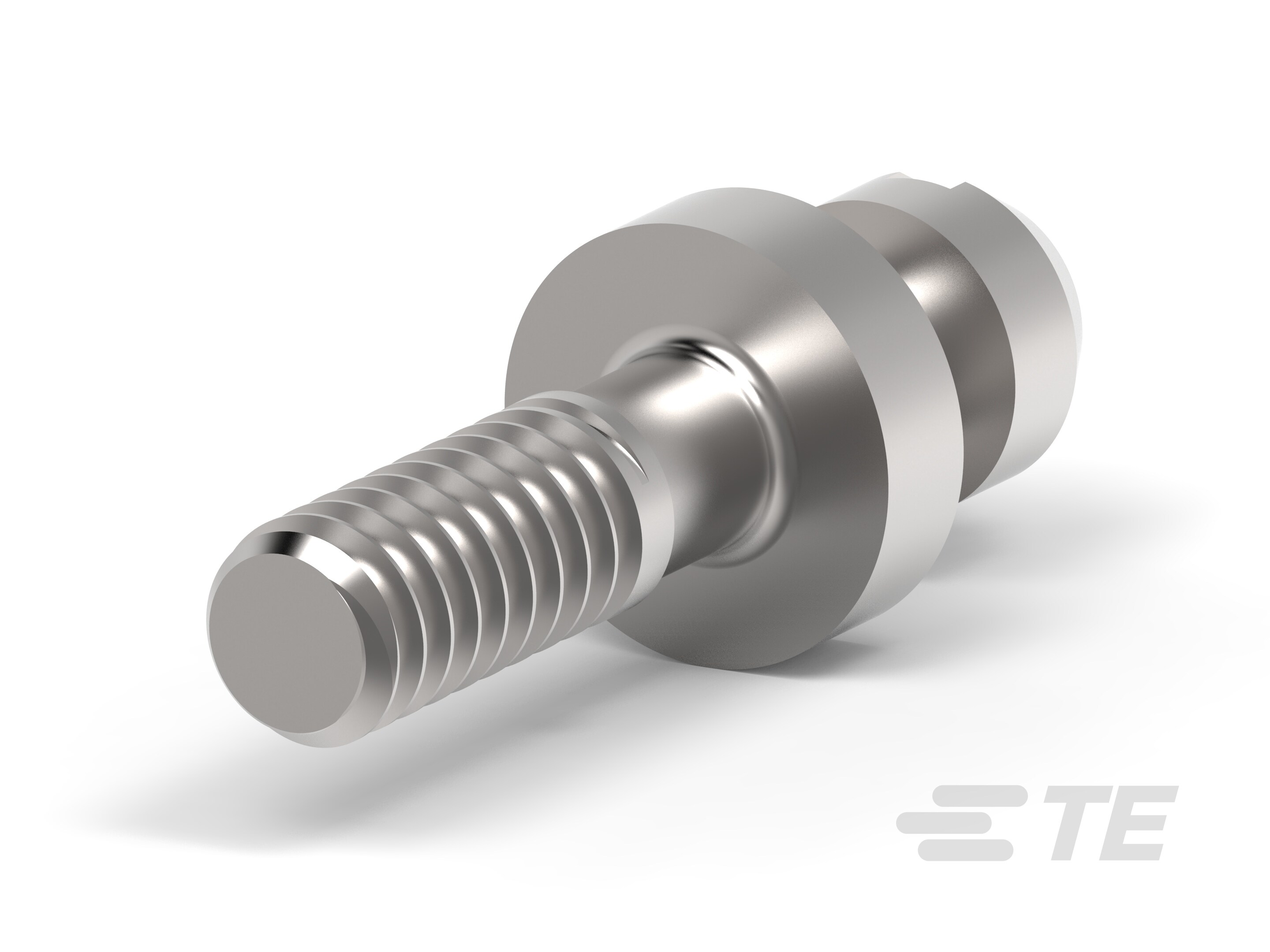

CONN CHAMP LATCHING POST BRD MT
| Part | Length - Below Head [x] | Length - Below Head [x] | For Use With/Related Products | Thread Size | Accessory Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Number of Positions | Number of Rows [custom] | Connector Type | Mounting Type | Connector Style | Features | Contact Finish | Termination | Cable Type | Primary Material | Cable Exit | Color | Shielding | Material | Plating | Hardware |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 6 mm | 0.236 in | CHAMP D-Sub Connectors | M2 | Locking Post | |||||||||||||||||||

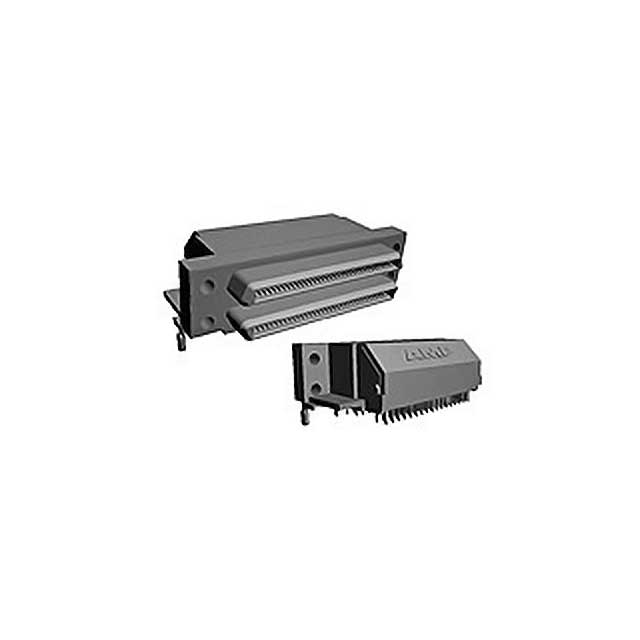

 TE Connectivity AMP Connectors | 30 Áin | 0.76 Ám | Housing/Shell (M2.6) | 68 positions | 2 | Stacked 2 Receptacles | Panel Mount Right Angle Through Hole | Outer Shroud Contacts | Board Lock | Gold | Solder | |||||||||||||
 TE Connectivity AMP Connectors | Two Piece Backshell and Cover | 50 | Mating Screws | Round | Metal | 180 ° | Black | Shielded | Metal Shell Steel/Plastic Cover | |||||||||||||||

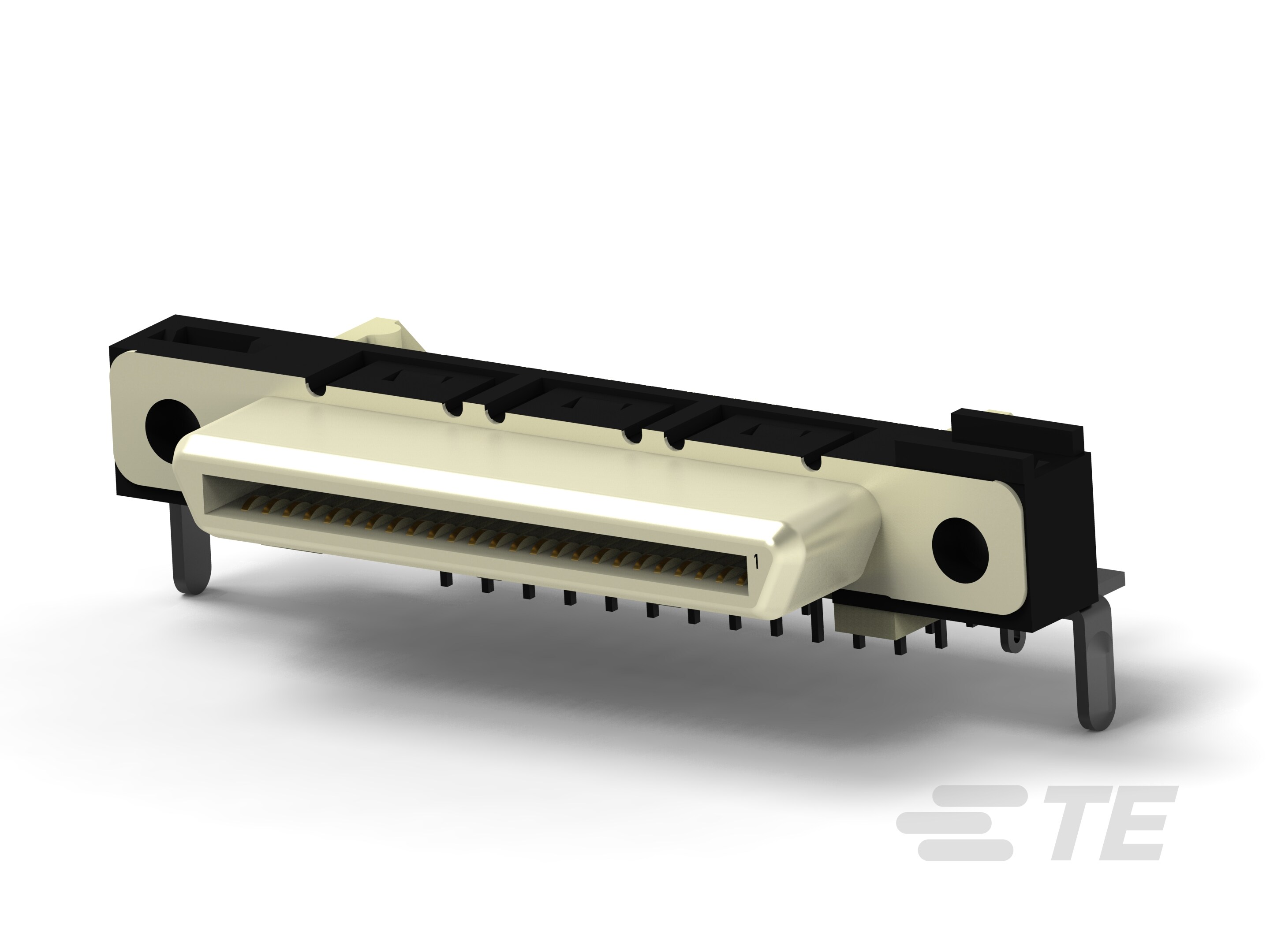

 TE Connectivity AMP Connectors | 30 Áin | 0.76 Ám | Housing/Shell (M2.6) | 50 | 2 | Receptacle | Panel Mount Right Angle Through Hole | Outer Shroud Contacts | Board Lock Shielded | Gold | Solder | |||||||||||||

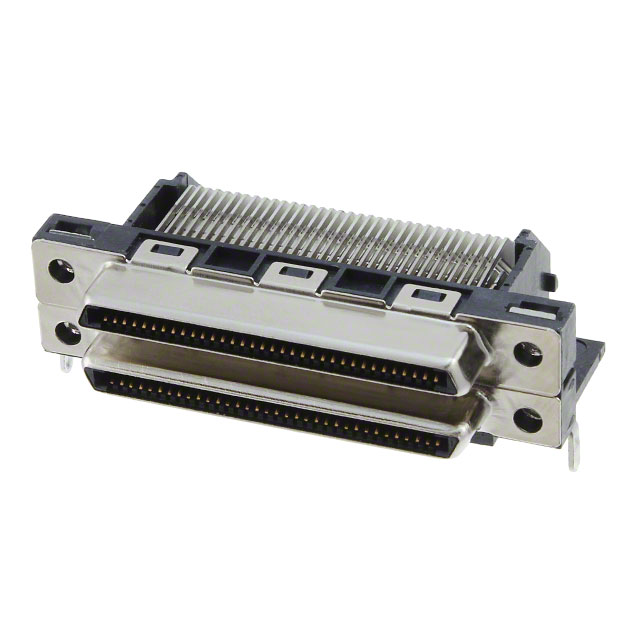

 TE Connectivity AMP Connectors | 30 Áin | 0.76 Ám | Housing/Shell (M2.6) | 68 positions | 2 | Stacked 2 Receptacles | Panel Mount Right Angle Through Hole | Outer Shroud Contacts | Board Lock | Gold | Solder | |||||||||||||
 TE Connectivity AMP Connectors | 30 Áin | 0.76 Ám | Housing/Shell (M2.6) | 68 positions | 2 | Receptacle | Panel Mount Right Angle Through Hole | Outer Shroud Contacts | Board Guide Board Lock Shielded | Gold | Solder | |||||||||||||
 TE Connectivity AMP Connectors | Two Piece Backshell | 68 positions | Mating Screws | Round | Metal | 180 ° | Silver | Shielded | Metal Steel | Nickel over Copper | ||||||||||||||
 TE Connectivity AMP Connectors | 30 Áin | 0.76 Ám | Housing/Shell (M2.6) | 68 positions | 2 | Receptacle | Panel Mount Right Angle Through Hole | Outer Shroud Contacts | Board Guide Board Lock Shielded | Gold | Solder | |||||||||||||
 TE Connectivity AMP Connectors | 30 Áin | 0.76 Ám | 68 positions | 2 | Stacked 2 Plugs | Free Hanging (In-Line) | Center Strip Contacts | Shielded | Gold | IDC | ||||||||||||||
 TE Connectivity AMP Connectors | Two Piece Backshell and Cover | 36 | Spring Lock | Round | Metal | 180 ° | Black | Shielded | Metal Shell Steel/Plastic Cover | Strain Relief |
