75188 Series

Catalog

CONN HEADER VERT 18POS 5.08MM

Part	Shrouding	Mounting Type	Insulation Color	Contact Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Termination	Number of Positions	Contact Type	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Connector Type	Overall Contact Length	Overall Contact Length	Insulation Material	Material Flammability Rating	Contact Shape	Number of Rows	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]

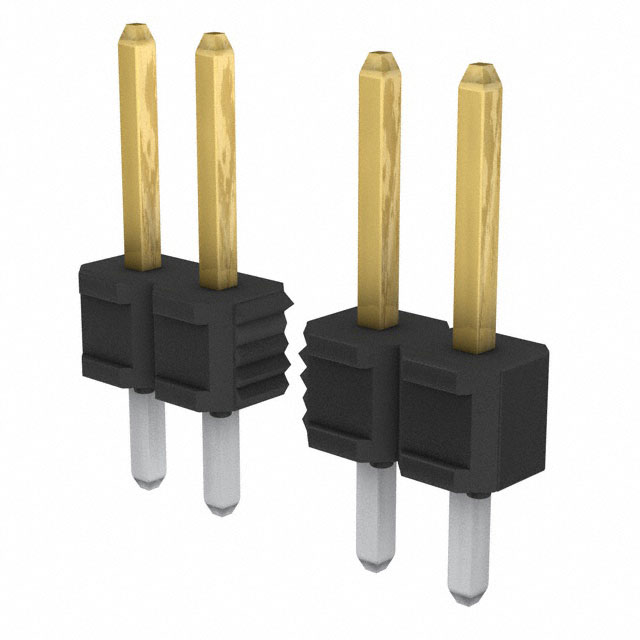

Amphenol ICC (FCI) 75188-118-18	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	18	Male Pin	Gold GXT™	0.225 in	5.72 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.12 in	3.05 mm	Header	11.3 mm	0.445 "	Thermoplastic	UL94 V-0	Square	1	Push-Pull

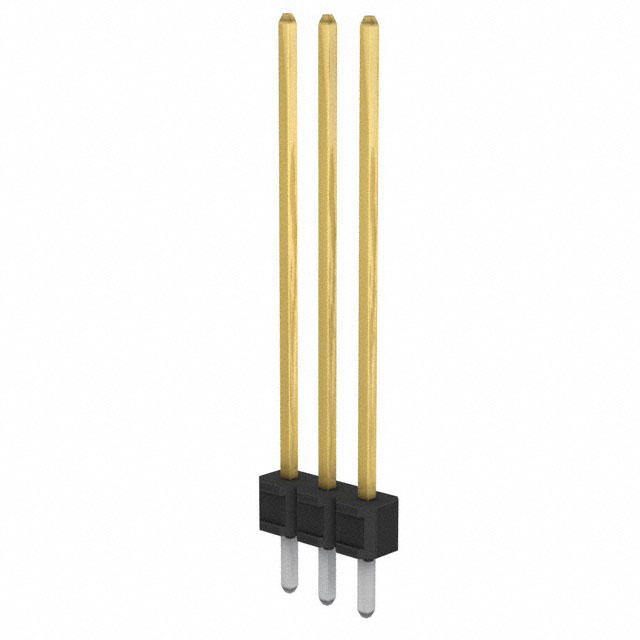

Amphenol ICC (FCI) 75188-130-03LF	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder		Male Pin	Gold GXT™	0.89 in	22.61 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.135 in	3.43 mm	Header	28.58 mm	1.125 "	Thermoplastic	UL94 V-0	Square	1	Push-Pull

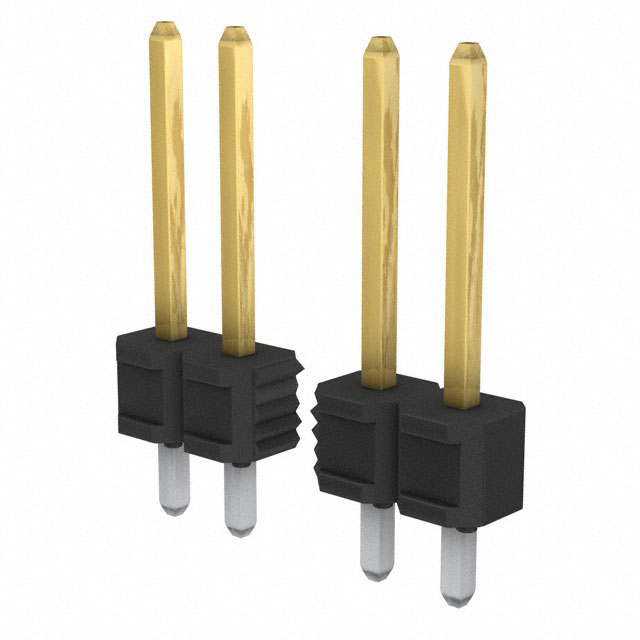

Amphenol ICC (FCI) 75188-115-18	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	18	Male Pin	Gold GXT™	0.335 in	8.51 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm			Header	13.59 mm	0.535 in	Thermoplastic	UL94 V-0	Square	1	Push-Pull	2.54 mm	0.1 in

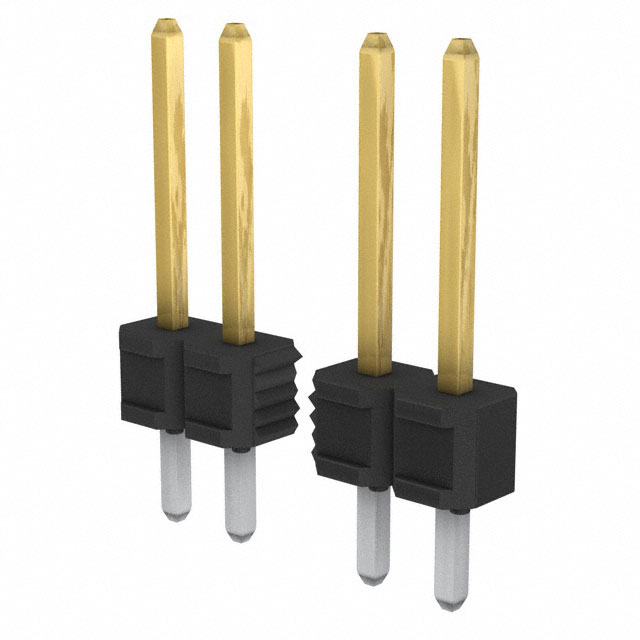

Amphenol ICC (FCI) 75188-125-10LF	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	10	Male Pin	Gold GXT™	0.335 in	8.51 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.125 in	3.18 mm	Header	14.22 mm	0.56 in	Thermoplastic	UL94 V-0	Square	1	Push-Pull

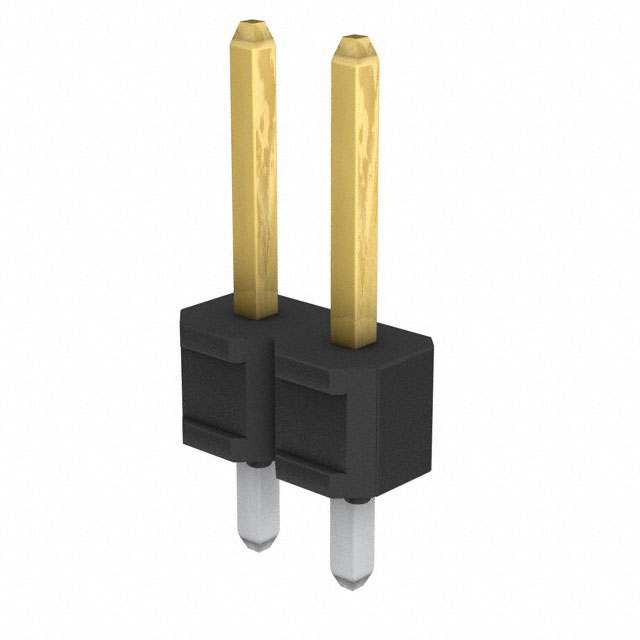

Amphenol ICC (FCI) 75188-101-02LF	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	2	Male Pin	Gold GXT™	0.225 in	5.72 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm			Header			Thermoplastic	UL94 V-0	Square	1	Push-Pull	2.54 mm	0.1 in
Amphenol ICC (FCI) 75188-115-18LF	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	18	Male Pin	Gold GXT™	0.335 in	8.51 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm			Header	13.59 mm	0.535 in	Thermoplastic	UL94 V-0	Square	1	Push-Pull	2.54 mm	0.1 in
Amphenol ICC (FCI) 75188-101-02	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	2	Male Pin	Gold GXT™	0.225 in	5.72 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm			Header			Thermoplastic	UL94 V-0	Square	1	Push-Pull	2.54 mm	0.1 in
Amphenol ICC (FCI) 75188-125-09LF	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	9	Male Pin	Gold GXT™	0.335 in	8.51 mm	30 Áin	0.76 Ám	0.1 in	2.54 mm	0.125 in	3.18 mm	Header	14.22 mm	0.56 in	Thermoplastic	UL94 V-0	Square	1	Push-Pull
Amphenol ICC (FCI) 75188-202-18LF	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	18	Male Pin	Gold GXT™		5.84 mm	50 µin	1.27 µm	0.1 in	2.54 mm	0.135 in	3.43 mm	Header	11.81 mm	0.465 in	Thermoplastic	UL94 V-0	Square	1	Push-Pull			0.23 in
Amphenol ICC (FCI) 75188-319-18LF	Unshrouded	Through Hole	Black	Phosphor Bronze	5.08 mm	0.2 in	All	Solder	18	Male Pin		0.505 in	12.83 mm	78.7 µin	2 µm	0.1 in	2.54 mm	0.12 in	3.05 mm	Header	18.42 mm	0.725 "	Thermoplastic	UL94 V-0	Square	1	Push-Pull
