842-112 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FML 112POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Type	Color	Contact Finish	Read Out	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Material	Mounting Type	Number of Positions	Number of Positions/Bay/Row	Termination	Number of Rows [custom]	Gender	Pitch	Pitch	Features
EDAC Inc. 842-112-523-212	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Through Hole	112	56	Solder	2	Female	0.1 "	2.54 mm

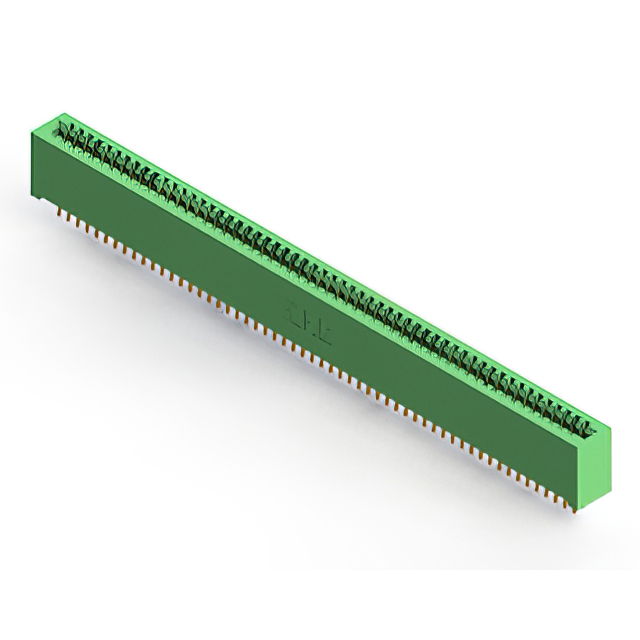

EDAC Inc. 842-112-556-201	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C				Copper Alloy	Board Edge Straddle Mount	112	56	Solder	2	Female	0.1 "	2.54 mm	Card Extender
EDAC Inc. 842-112-544-204	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Through Hole	112	56	Wire Wrap	2	Female	0.1 "	2.54 mm
EDAC Inc. 842-112-559-212	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Right Angle Through Hole	112	56	Solder	2	Female	0.1 "	2.54 mm

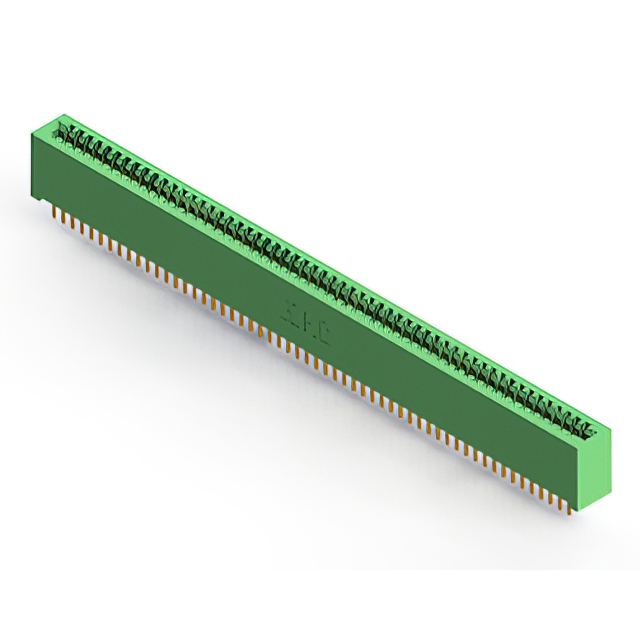

EDAC Inc. 842-112-521-201	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C				Copper Alloy	Through Hole	112	56	Solder	2	Female	0.1 "	2.54 mm
EDAC Inc. 842-112-560-208	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Board Edge Straddle Mount	112	56	Solder	2	Female	0.1 "	2.54 mm	Card Extender

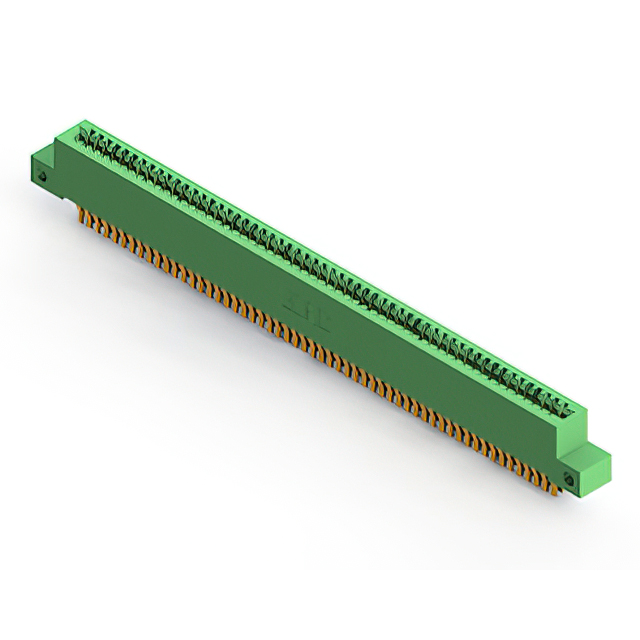

EDAC Inc. 842-112-560-212	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Copper Alloy	Board Edge Straddle Mount	112	56	Solder	2	Female	0.1 "	2.54 mm	Card Extender
EDAC Inc. 842-112-558-204	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Copper Alloy	Right Angle Through Hole	112	56	Solder	2	Female	0.1 "	2.54 mm
EDAC Inc. 842-112-542-208	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening			Copper Alloy	Through Hole	112	56	Wire Wrap	2	Female	0.1 "	2.54 mm

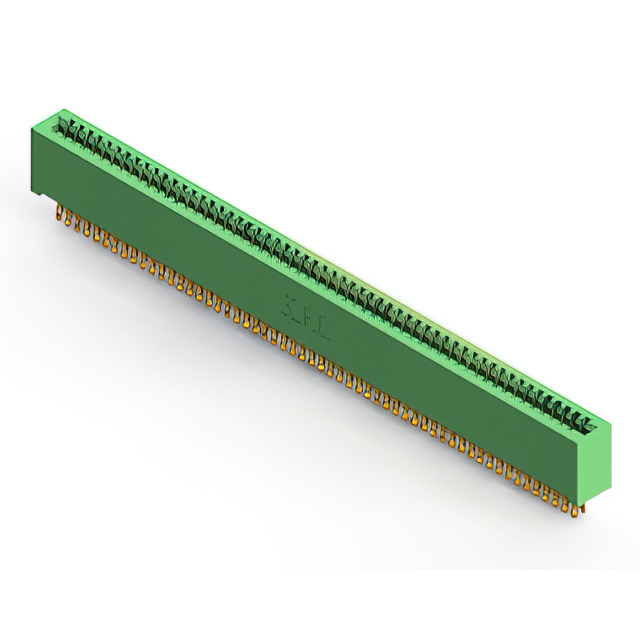

EDAC Inc. 842-112-555-201	Diallyl Phthalate (DAP)	2	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	Cantilever	Green	Gold	Dual	0.25 Ám	10 Áin	125 °C	-40 C				Copper Alloy	Board Edge Straddle Mount	112	56	Solder	2	Female	0.1 "	2.54 mm	Card Extender
