SSF-LXH4 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

LED CBI 5MM YELLOW DIFF RA

Part	Lens Type	Millicandela Rating	Viewing Angle	Wavelength - Peak	Current	Color	Lens Style	Lens Size	Lens Size	Configuration	Voltage Rating	Mounting Type
Lumex Opto/Components Inc. SSF-LXH4RA5LYD	Diffused Tinted	30 mcd	60 °	585 nm	20 mA	Yellow	Round with Domed Top	5 mm	T-1 3/4	Single	2.1 V	Right Angle Through Hole
Lumex Opto/Components Inc. SSF-LXH4RASBD	Diffused Tinted	25 mcd	60 °	430 nm	20 mA	Blue	Round with Domed Top	3 mm	T-1	Single	4.5 V	Right Angle Through Hole

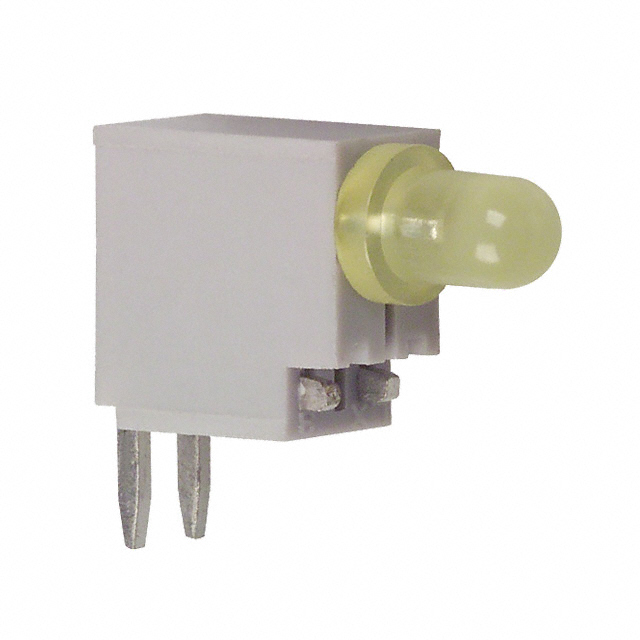

Lumex Opto/Components Inc. SSF-LXH4RAYD	Diffused Tinted	30 mcd	60 °	585 nm	20 mA	Yellow	Round with Domed Top	3 mm	T-1	Single	2.1 V	Right Angle Through Hole
Lumex Opto/Components Inc. SSF-LXH4RA5LID	Diffused Tinted	40 mcd	60 °	635 nm	20 mA	Red	Round with Domed Top	5 mm	T-1 3/4	Single	2.1 V	Right Angle Through Hole

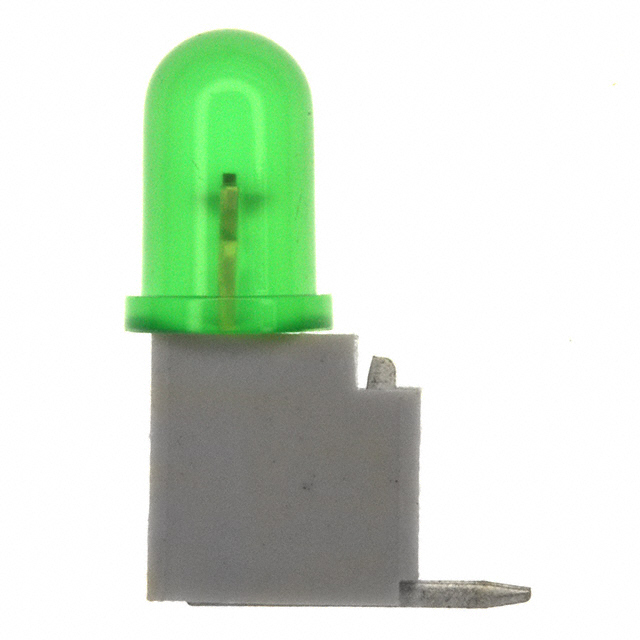

Lumex Opto/Components Inc. SSF-LXH4RA5GD-5V	Diffused Tinted	15 mcd	60 °	565 nm	12 mA	Green	Round with Domed Top	5 mm	T-1 3/4	Single	5 V	Right Angle Through Hole

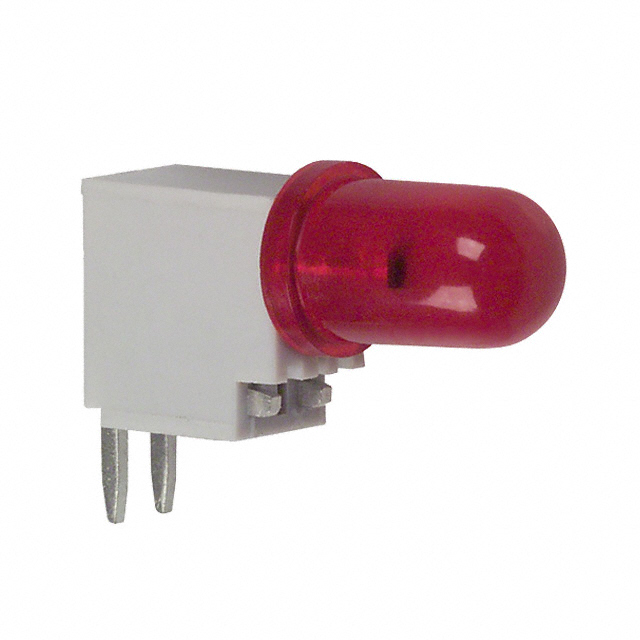

Lumex Opto/Components Inc. SSF-LXH4RA5SRD	Diffused Tinted	80 mcd	60 °	660 nm	20 mA	Red	Round with Domed Top	5 mm	T-1 3/4	Single	1.7 V	Right Angle Through Hole

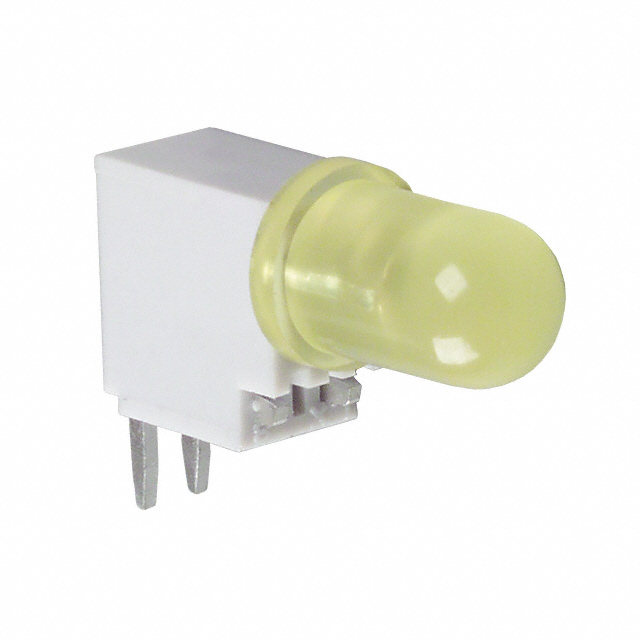

Lumex Opto/Components Inc. SSF-LXH4RA5YD	Diffused Tinted	30 mcd	60 °	585 nm	20 mA	Yellow	Round with Domed Top	5 mm	T-1 3/4	Single	2.1 V	Right Angle Through Hole

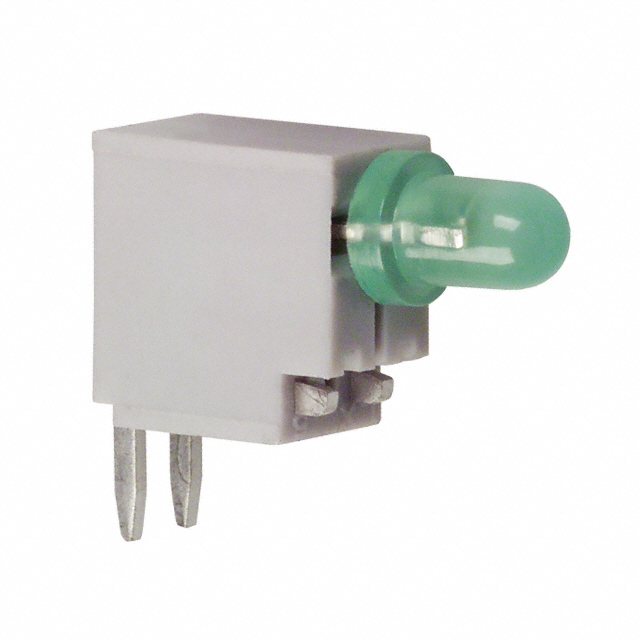

Lumex Opto/Components Inc. SSF-LXH4RAGD	Diffused Tinted	30 mcd	60 °	565 nm	20 mA	Green	Round with Domed Top	3 mm	T-1	Single	2.1 V	Right Angle Through Hole
Lumex Opto/Components Inc. SSF-LXH4RA5ID	Diffused Tinted	30 mcd	60 °	635 nm	20 mA	Red	Round with Domed Top	5 mm	T-1 3/4	Single	2.1 V	Right Angle Through Hole

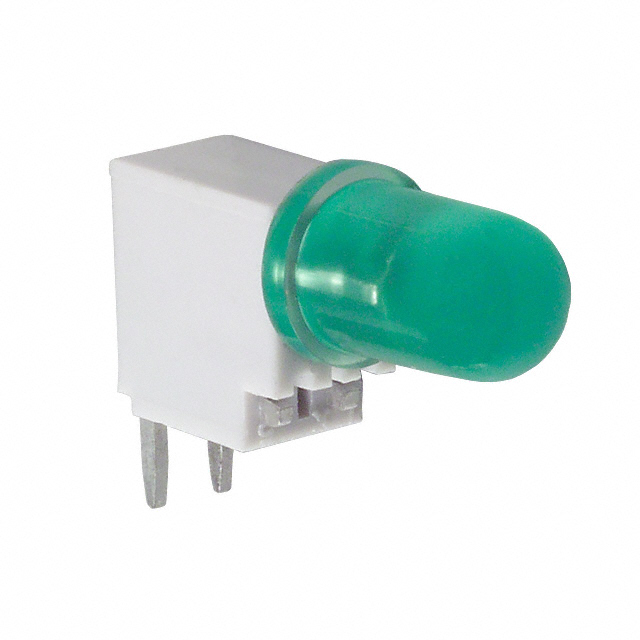

Lumex Opto/Components Inc. SSF-LXH4RA5GD	Diffused Tinted	30 mcd	60 °	565 nm	20 mA	Green	Round with Domed Top	5 mm	T-1 3/4	Single	2.1 V	Right Angle Through Hole
