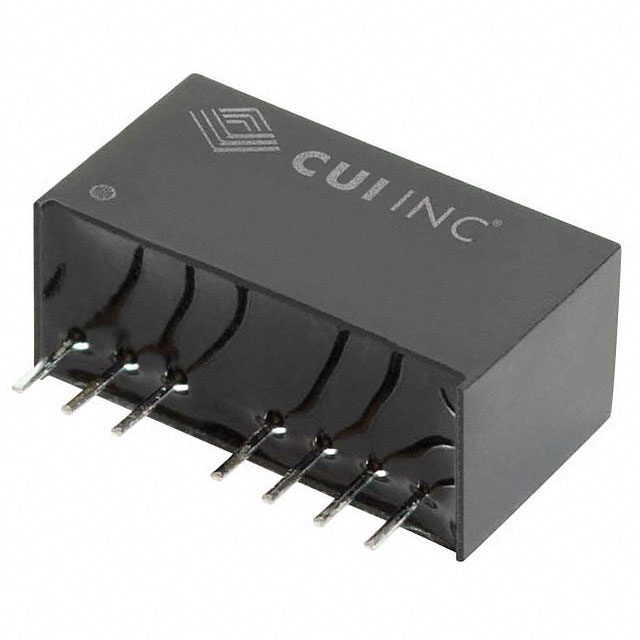

PQMC3 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 9V 3W

Part	Control Features	Voltage - Output 1	Number of Outputs	Voltage - Isolation	Efficiency	Type	Standard Number	Current - Output (Max) [Max]	Features	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Voltage - Input (Min) [Min]	Power (Watts)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
CUI Inc. PQMC3-D5-S9-S	Active Low Enable	9 V	1	1.5 kV	74 %	Isolated Module	55024 55032	278 mA	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	9 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	4.5 V	3 W
CUI Inc. PQMC3-D12-S9-S	Active Low Enable	9 V	1	1.5 kV	79 %	Isolated Module	55024 55032	333 mA	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	18 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	9 V	3 W
CUI Inc. PQMC3-D24-S9-S	Active Low Enable	9 V	1	1.5 kV	83 %	Isolated Module	55024 55032	333 mA	Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	36 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	18 V	3 W
CUI Inc. PQMC3-D24-S15-S		15 V	1	1.5 kV	81 %	Isolated Module	55024 55032	200 mA	OCP SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	36 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	18 V	3 W
CUI Inc. PQMC3-D24-S5-S		5 V	1	1.5 kV	78 %	Isolated Module	55024 55032	600 mA	OCP SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	36 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	18 V	3 W
CUI Inc. PQMC3-D5-D15-S		15 V	2	1.5 kV	71 %	Isolated Module	55024 55032		OCP SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	9 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	4.5 V	3 W	-15 V	83 mA	83 mA
CUI Inc. PQMC3-D24-D12-S		12 V	2	1.5 kV	80 %	Isolated Module	55024 55032		OCP SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	36 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	18 V	3 W	-12 V	125 mA
CUI Inc. PQMC3-D24-D9-S	Active Low Enable	9 V	2	1.5 kV	81 %	Isolated Module	55024 55032		Remote On/Off SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	36 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	18 V	3 W	-9 V	167 mA
CUI Inc. PQMC3-D12-D12-S		12 V	2	1.5 kV	79 %	Isolated Module	55024 55032		OCP SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	18 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	9 V	3 W	-12 V	125 mA
CUI Inc. PQMC3-D12-D15-S		15 V	2	1.5 kV	80 %	Isolated Module	55024 55032		OCP SCP	8-SIP Module 7 Leads	ITE (Commercial)	-40 C	105 ░C	18 V	Through Hole	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	EN	9 V	3 W	-15 V		100 mA	100 mA
