8837-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

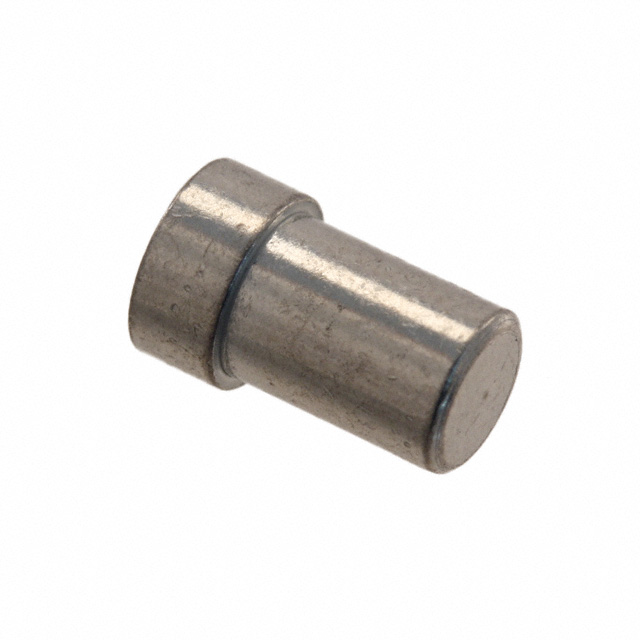

CONN PIN RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Termination | Contact Material | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Length - Overall | Length - Overall | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Tail Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.72 mm | 0.107 in | Solder | Beryllium Copper | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 7.77 mm | 0.306 in | Gold | 0.187 in | 4.75 mm | 4.04 mm | 0.159 in | 0.25 Ám | 10 Áin | No Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.72 mm | 0.107 in | Solder | Beryllium Copper | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 7.77 mm | 0.306 in | Gold | 0.187 in | 4.75 mm | 4.04 mm | 0.159 in | 0.25 Ám | 10 Áin | No Tail |
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.72 mm | 0.107 in | Solder | Beryllium Copper | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 7.77 mm | 0.306 in | Gold | 0.187 in | 4.75 mm | 4.04 mm | 0.159 in | 0.76 Ám | 30 Áin | No Tail |
Mill-Max Manufacturing Corp. | -55 C | 125 °C | 2.72 mm | 0.107 in | Solder | Beryllium Copper | 2.08 mm | 0.082 " | 0.065 " | 1.65 mm | 7.77 mm | 0.306 in | Gold | 0.187 in | 4.75 mm | 4.04 mm | 0.159 in | 0.76 Ám | 30 Áin | No Tail |
