MLL1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

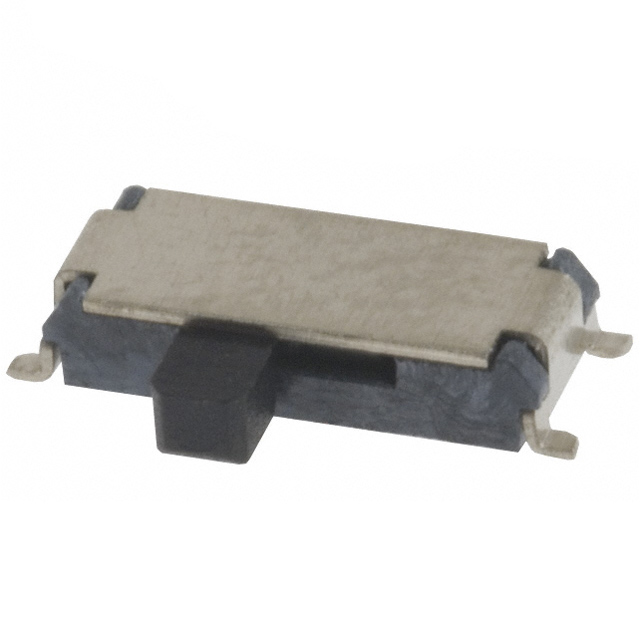

SWITCH SLIDE SPDT 300MA 4V
| Part | Actuator Material | Operating Force | Electrical Life | Switch Travel | Mechanical Life | Switch Function | Contact Timing | Actuator Type | Contact Material | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Mounting Type | Contact Finish | Voltage Rating - DC | Current Rating (Amps) | Termination Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Polyamide (PA46) Nylon 4/6 | 150 gf | 10000 Cycles | 1.5 mm | 10000 Steps | On-On | Not Specified | Standard | Copper Alloy | 1.5 mm | 85 °C | -20 ░C | SPDT | Right Angle Surface Mount | Silver | 4 V | 300 mA | Gull Wing | Epoxy Sealed Terminals |
