91C1A Series
Manufacturer: Bourns Inc.
Beta
⌘K

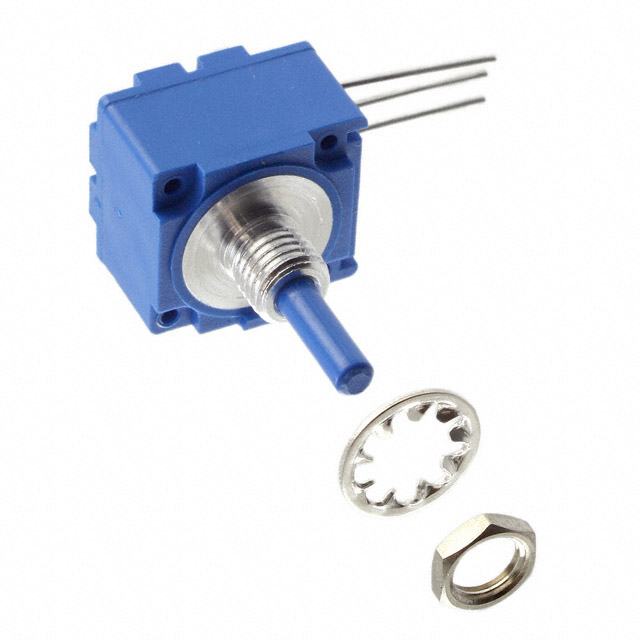

POT 1K OHM 2W CERMET LINEAR
| Part | Resistive Material | Adjustment Type | Rotation | Number of Gangs | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Temperature Coefficient | Actuator Length [x] | Actuator Length [x] | Resistance (Ohms) | Power (Watts) | Built in Switch | Bushing Thread | Number of Turns | Tolerance | Mounting Type | Taper | Size - Body [x] | Size - Body [x] | Size - Body [y] | Size - Body [y] | Actuator Type | Termination Style | Resistance (Ohms) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Cermet | Side Adjustment | 300 ░ | 1 | 3.18 mm | 0.125 in | 150 ppm/°C | 19.05 mm | 0.75 in | 1k | 2 W | None | 1/4-32 | 1 | 10 % | Panel Mount | Linear | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Round | PC Pins | |
Bourns Inc. | Conductive Plastic | Side Adjustment | 300 ░ | 1 | 3.18 mm | 0.125 in | 1000 ppm/°C | 19.05 mm | 0.75 in | 1 W | None | 1/4-32 | 1 | 20 % | Panel Mount | Linear | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Round | PC Pins | 50 kOhms | |
 Bourns Inc. | Conductive Plastic | Side Adjustment | 300 ░ | 1 | 3.18 mm | 0.125 in | 1000 ppm/°C | 15.88 mm | 0.625 in | 10k | 1 W | None | 1/4-32 | 1 | 20 % | Panel Mount | Linear | 17.45 mm | 0.687 " | 0.625 " | 15.88 mm | Round | PC Pins |
