1068-0 Series

Catalog

CONN PC PIN CIRC

Part	Contact Finish	Mounting Type	Insulation	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Terminal Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Length - Overall	Length - Overall	Termination	Contact Material	Length - Below Flange [x]	Length - Below Flange [x]	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Length - Above Flange [x]	Length - Above Flange [x]	Terminal Style
Mill-Max Manufacturing Corp. 1068-0-23-80-00-00-01-0	Tin	Through Hole	Non-Insulated	200 Áin	5.08 Ám	0.072 "	1.83 mm	PC Pin	1.45 mm	0.057 in	0.719 in	18.26 mm	Press-Fit Wire Wrap	Brass Alloy	0.561 "	14.25 mm

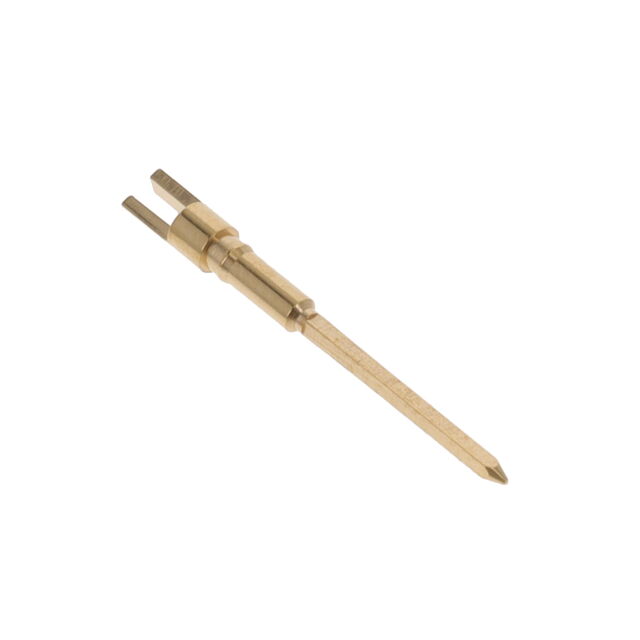

Mill-Max Manufacturing Corp. 1068-0-23-15-00-00-01-0	Gold	Through Hole	Non-Insulated	10 Áin	0.25 Ám	0.072 "	1.83 mm	PC Pin	1.45 mm	0.057 in	0.719 in	18.26 mm	Press-Fit Wire Wrap	Brass Alloy	0.561 "	14.25 mm	1.83 mm	0.072 in	0.158 in	4.01 mm	Single End Slotted
Mill-Max Manufacturing Corp. 1068-0-23-21-00-00-01-0	Gold	Through Hole	Non-Insulated	20 µin	0.51 µm	0.072 "	1.83 mm	PC Pin	1.45 mm	0.057 in	0.719 in	18.26 mm	Press-Fit Wire Wrap	Brass Alloy	0.561 "	14.25 mm	1.83 mm	0.072 in	0.158 in	4.01 mm	Single End Slotted
Mill-Max Manufacturing Corp. 1068-0-23-01-00-00-01-0	Tin-Lead	Through Hole	Non-Insulated	200 Áin	5.08 Ám	0.072 "	1.83 mm	PC Pin	1.45 mm	0.057 in	0.719 in	18.26 mm	Press-Fit Wire Wrap	Brass Alloy	0.561 "	14.25 mm	1.83 mm	0.072 in	0.158 in	4.01 mm	Single End Slotted
