NPPC352 Series

Catalog

CONN HDR 70POS 0.1 GOLD SMD

Part	Contact Shape	Contact Material	Insulation Material	Contact Finish Thickness - Post	Insulation Color	Contact Finish - Post	Termination	Number of Positions	Contact Finish Thickness - Mating	Number of Rows [custom]	Fastening Type	Current Rating (Amps)	Insulation Height [z]	Insulation Height	Material Flammability Rating	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Type	Connector Type	Voltage Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Features	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions NPPC352KFMP-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Black	Gold	Solder	70	Flash	2	Push-Pull	3 A	0.299 "	7.6 mm	UL94 V-0	Gold	125 °C	-40 C	0.1 in	2.54 mm	All	Female Socket	Header	250 V	Surface Mount	0.1 "	2.54 mm	Board Guide

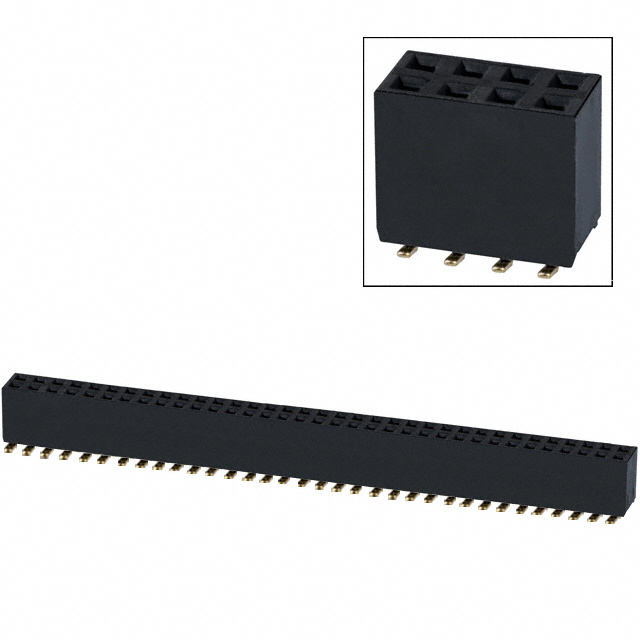

Sullins Connector Solutions NPPC352KFMS-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Black	Gold	Solder	70	Flash	2	Push-Pull	3 A	0.299 "	7.6 mm	UL94 V-0	Gold	125 °C	-40 C	0.1 in	2.54 mm	All	Female Socket	Header	250 V	Surface Mount	0.1 "	2.54 mm
Sullins Connector Solutions NPPC352LFBN-RC	Square	Phosphor Bronze	Nylon 6T Polyamide (PA6T)	Flash	Black	Gold	Solder	70	Flash	2	Push-Pull	3 A		8.51 mm	UL94 V-0	Gold	105 ░C	-40 C	0.1 in	2.54 mm	All	Female Socket	Header	250 V	Through Hole	0.1 "	2.54 mm		0.335 "	0.126 "	3.2 mm
