387-037 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, 37 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, HOLE 0.156, BLACK INSULATOR,

...

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Color	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Type	Card Type	Read Out	Termination	Mounting Type	Pitch [x]	Pitch [x]	Termination Rows

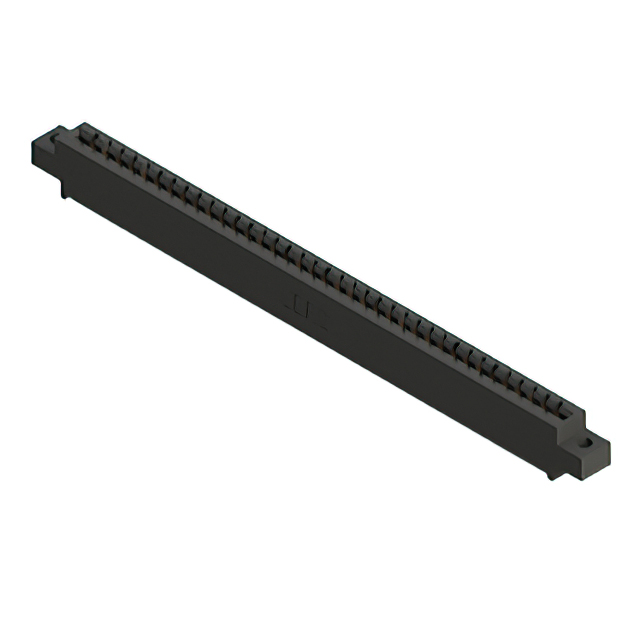

EDAC Inc. 387-037-523-604	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	Top Mount Opening Unthreaded	3.96 mm	Cantilever	Non Specified - Single Edge	Single	Solder	Through Hole	0.156 in	3.96 mm	1

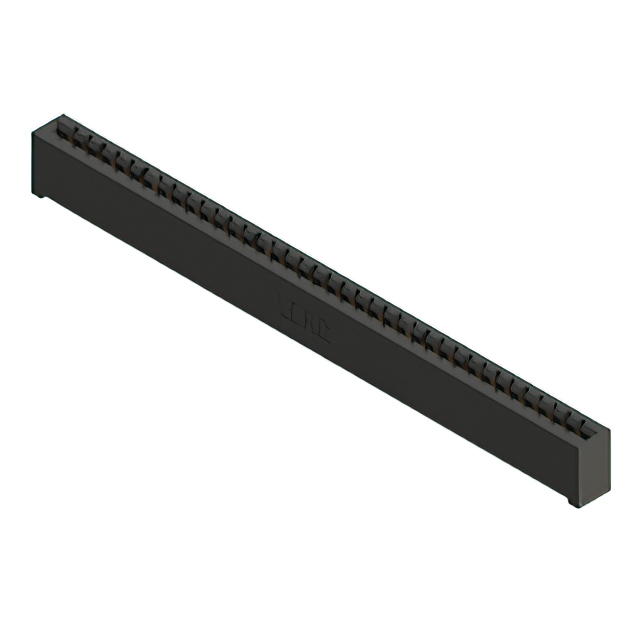

EDAC Inc. 387-037-520-101	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in				Cantilever	Non Specified - Single Edge	Single	Solder	Through Hole	0.156 in	3.96 mm	1
EDAC Inc. 387-037-559-103	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Cantilever	Non Specified - Single Edge	Single	Wire Wrap	Through Hole Right Angle	0.156 in	3.96 mm	1

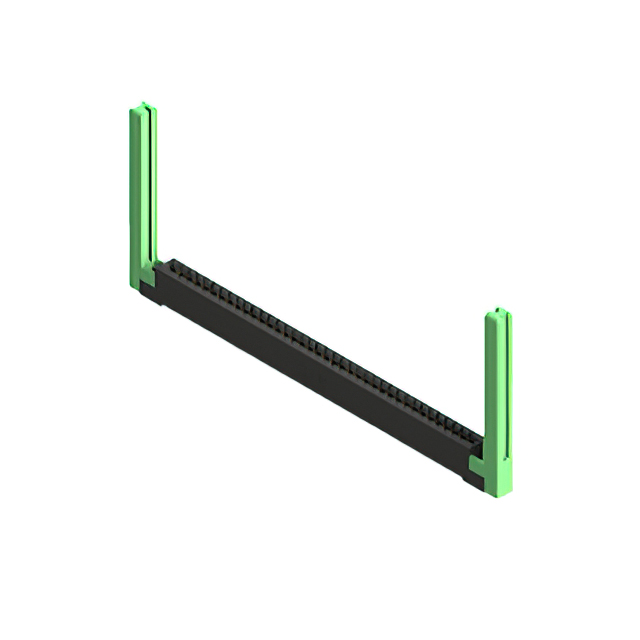

EDAC Inc. 387-037-541-158	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Non Specified - Single Edge	Single	Wire Wrap	Through Hole	0.156 in	3.96 mm	1
EDAC Inc. 387-037-524-102	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Cantilever	Non Specified - Single Edge	Single	Solder	Through Hole	0.156 in	3.96 mm	1

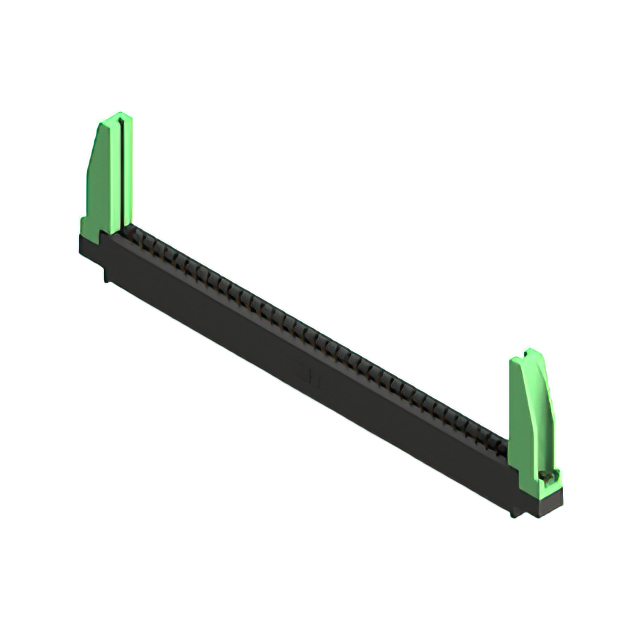

EDAC Inc. 387-037-521-678	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Threaded Insert Top Mount Opening		Cantilever	Non Specified - Single Edge	Single	Solder	Through Hole	0.156 in	3.96 mm	1

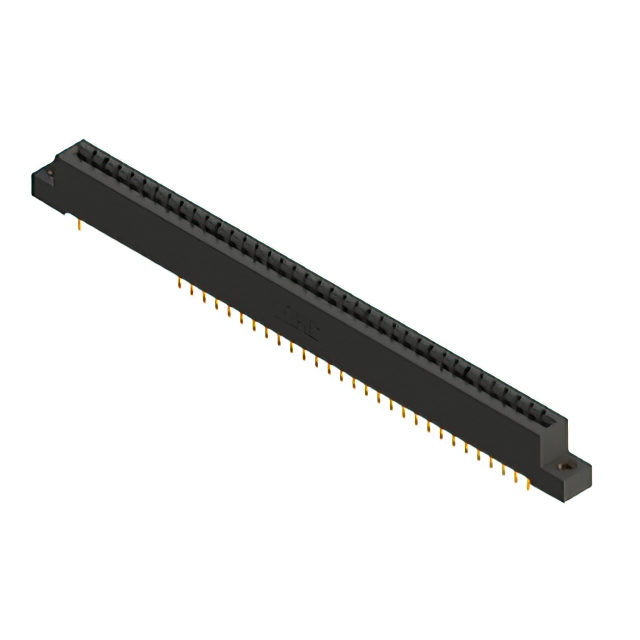

EDAC Inc. 387-037-558-108	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Non Specified - Single Edge	Single	Wire Wrap	Through Hole Right Angle	0.156 in	3.96 mm	1

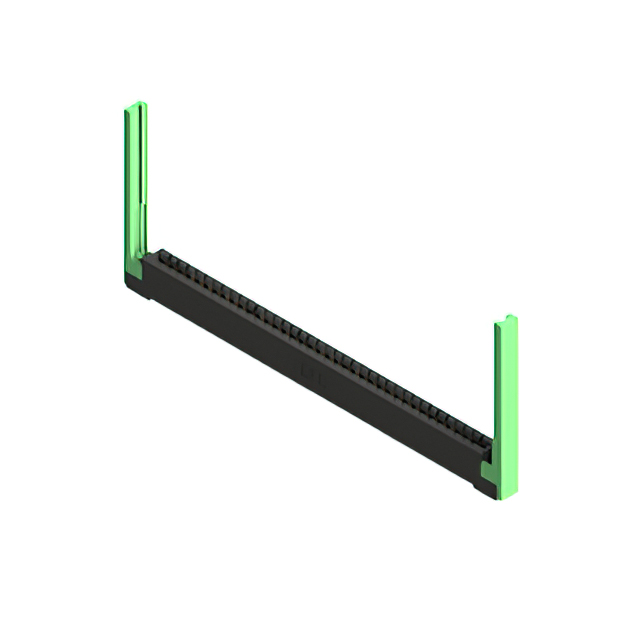

EDAC Inc. 387-037-542-168	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Non Specified - Single Edge	Single	Wire Wrap	Through Hole	0.156 in	3.96 mm	1

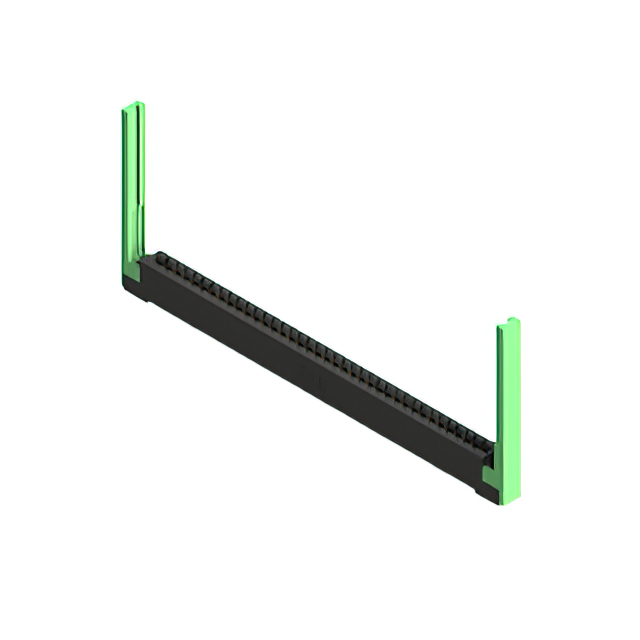

EDAC Inc. 387-037-540-168	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Cantilever	Non Specified - Single Edge	Single	Wire Wrap	Through Hole	0.156 in	3.96 mm	1

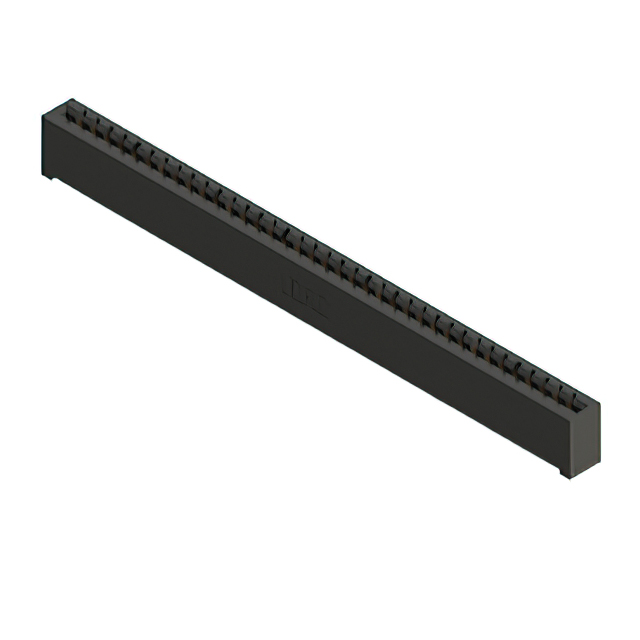

EDAC Inc. 387-037-542-101	1	-40 °C	105 ░C	Gold	Copper Alloy	Black	Polyester Thermoplastic	10 Áin	0.25 Ám	37	37	37	37	Female	1.37 mm	0.054 "	1.78 mm	0.07 in				Cantilever	Non Specified - Single Edge	Single	Wire Wrap	Through Hole	0.156 in	3.96 mm	1
