HEG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 4P GOLD SLDR CUP

Part	Primary Material	Material Flammability Rating	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Material	Mounting Feature	Insert Material	Shell Size - Insert	Orientation [custom]	Connector Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Number of Positions	Mounting Type	Features	Shell Material	Shell Finish	Color	Fastening Type	Shell Size - Insert [custom]	Termination
LEMO HEG.1B.304.CLLPV	Metal	UL94 V-0	IP68 - Dust Tight Waterproof	1.5 Ám	59 Áin	Gold	Bronze	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	304	G	Receptacle Female Sockets	10 A	-20 ░C	100 °C	Shielded	4	Panel Mount	Potted Vacuumtight	Brass	Chrome	Silver	Push-Pull
LEMO HEG.1B.305.CLLP	Metal	UL94 V-0	IP68 - Dust Tight Waterproof	1.5 Ám	59 Áin	Gold	Bronze	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	305	G	Receptacle Female Sockets	9 A	-20 ░C	100 °C	Shielded	5	Panel Mount	Potted	Brass	Chrome	Silver	Push-Pull
LEMO HEG.1B.314.CLLPV	Metal	UL94 V-0	IP68 - Dust Tight Waterproof	1.5 Ám	59 Áin	Gold	Bronze	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	314	G	Receptacle Female Sockets	2 A	-20 ░C	100 °C	Shielded	14	Panel Mount	Potted Vacuumtight	Brass	Chrome	Silver	Push-Pull
LEMO HEG.1B.307.CLNP	Metal	UL94 V-0	IP68 - Dust Tight Waterproof	1.5 Ám	59 Áin	Gold	Bronze	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)		G	Receptacle Female Sockets	7 A	-20 ░C	100 °C	Shielded	7	Panel Mount Through Hole	Potted	Brass	Chrome	Silver	Push-Pull	307	Solder

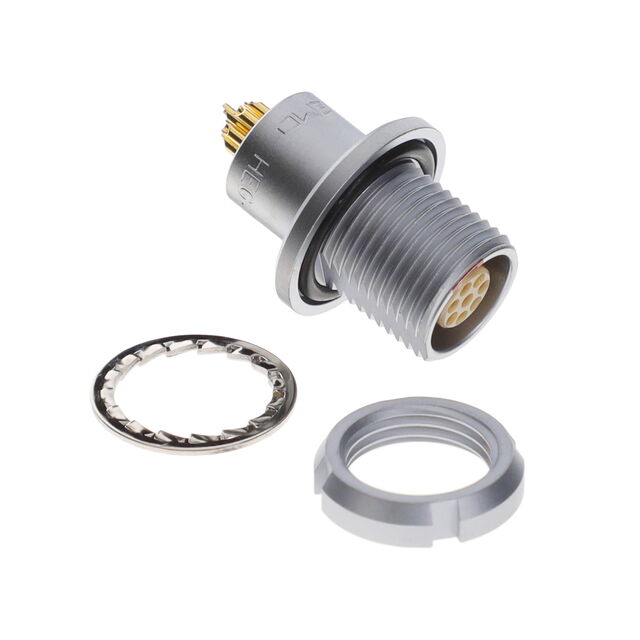

LEMO HEG.1B.308.CLLPV	Metal	UL94 V-0	IP68 - Dust Tight Waterproof	1.5 Ám	59 Áin	Gold	Bronze	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	308	G	Receptacle Female Sockets	5 A	-20 ░C	100 °C	Shielded	8	Panel Mount	Potted Vacuumtight	Brass	Chrome	Silver	Push-Pull
LEMO HEG.1B.308.CLLP	Metal	UL94 V-0	IP68 - Dust Tight Waterproof	1.5 Ám	59 Áin	Gold	Bronze	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	308	G	Receptacle Female Sockets	5 A	-20 ░C	100 °C	Shielded	8	Panel Mount	Potted	Brass	Chrome	Silver	Push-Pull
