R9A06G033 Series

Microprocessors Optimized for Small PLC and HMI; Reduces Peripheral Components and Adaptable for Gateway, Sensor Hub

Manufacturer: Renesas Electronics Corporation

Catalog

Microprocessors Optimized for Small PLC and HMI; Reduces Peripheral Components and Adaptable for Gateway, Sensor Hub

Part	Operating Temperature [Max]	Operating Temperature [Min]	Display & Interface Controllers	Supplier Device Package	Speed	Speed	Security Features	USB	Core Processor	Package / Case	Voltage - I/O	Ethernet	Number of Cores/Bus Width	Mounting Type	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [custom]
Renesas Electronics Corporation R9A06G032VGBG#AC1	85 °C	-40 °C	LCD	400-LFBGA (17x17)	125 MHz	500 MHz	3DES AES ARC4 DES MD5 SHA-1 SHA-224 SHA-256	USB 2.0 (2)	ARM® Cortex®-A7 ARM® Cortex®-M3	400-LFBGA	1.5 V 1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	3 Core 32 Bit	Surface Mount

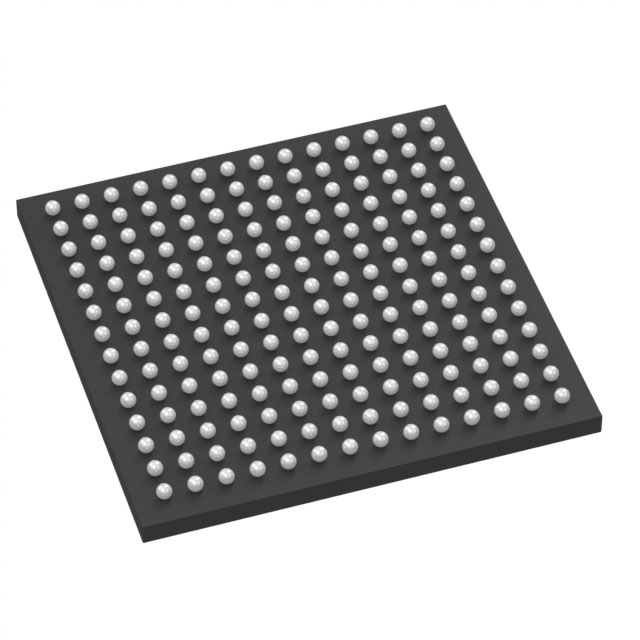

Renesas Electronics Corporation R9A06G034VGBA#AC1	85 °C	-40 °C	LCD	196-LFBGA (12x12)	125 MHz		3DES AES ARC4 DES MD5 SHA-1 SHA-224 SHA-256	USB 2.0 (2)	ARM® Cortex®-M3	196-LFBGA	1.5 V 1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	1 Core 32 Bit	Surface Mount
Renesas Electronics Corporation R9A06G033VGBA#AC1	85 °C	-40 °C	LCD	196-LFBGA (12x12)	125 MHz	500 MHz	3DES AES ARC4 DES MD5 SHA-1 SHA-224 SHA-256	USB 2.0 (2)	ARM® Cortex®-A7 ARM® Cortex®-M3	196-LFBGA	1.5 V 1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps		Surface Mount	32 Bit	2
Renesas Electronics Corporation R9A06G032NGBA#AC0

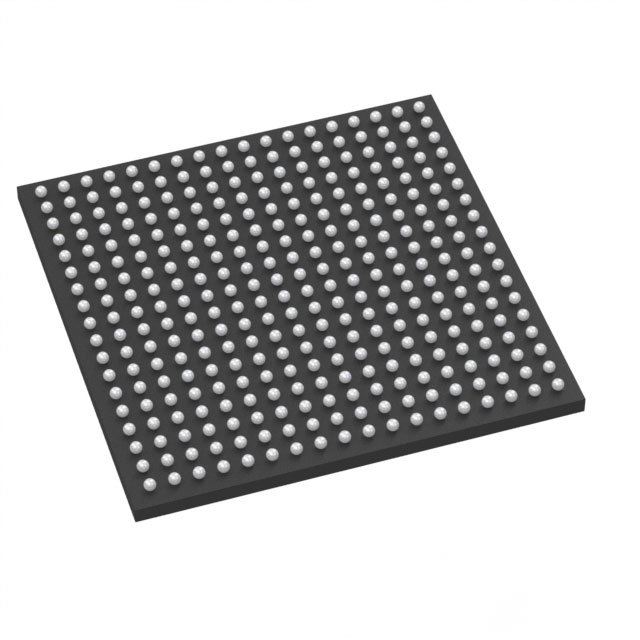

Renesas Electronics Corporation R9A06G033NGBG#AC1	85 °C	-40 °C	LCD	324-LFBGA (15x15)	125 MHz	500 MHz	3DES AES ARC4 DES MD5 SHA-1 SHA-224 SHA-256	USB 2.0 (2)	ARM® Cortex®-A7 ARM® Cortex®-M3	324-LFBGA	1.5 V 1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps		Surface Mount	32 Bit	2
Renesas Electronics Corporation R9A06G034NGBA#AC0
Renesas Electronics Corporation R9A06G032NGBG#AC1	85 °C	-40 °C	LCD	400-LFBGA (17x17)	125 MHz	500 MHz	3DES AES ARC4 DES MD5 SHA-1 SHA-224 SHA-256	USB 2.0 (2)	ARM® Cortex®-A7 ARM® Cortex®-M3	400-LFBGA	1.5 V 1.8 V 2.5 V 3.3 V	10 Mbps 100 Mbps 1000 Mbps	3 Core 32 Bit	Surface Mount

Catalog

Microprocessors Optimized for Small PLC and HMI; Reduces Peripheral Components and Adaptable for Gateway, Sensor Hub

Description

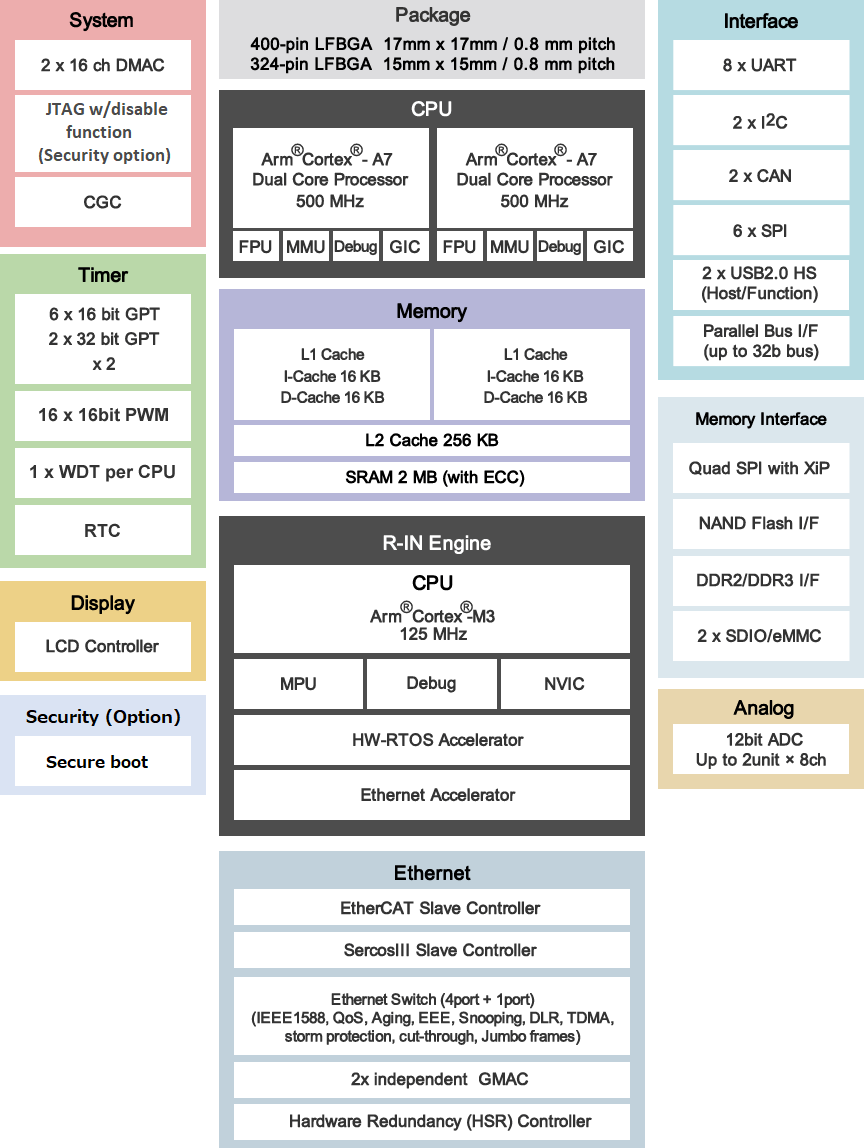

RZ/N1S housed Cortex®-A7 and a large size of built-in RAM in a small package. Since peripheral parts can be reduced, it can be used for small PLC, HMI, etc. In addition, since it has a proven Renesas R-IN engine ("R-IN engine") as an accelerator for industrial Ethernet communication, it can be used for protocol gateway, sensor hub, etc.
