CUS-13T Series
Manufacturer: Nidec Components Corporation
Beta
⌘K

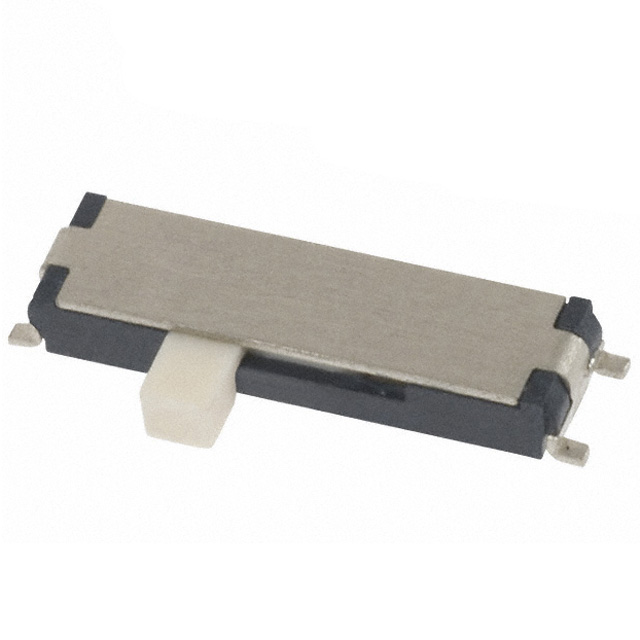

SWITCH SLIDE SP3T 300MA 4V
| Part | Switch Travel | Actuator Material | Electrical Life | Operating Force [Min] | Operating Force [Max] | Contact Timing | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Termination Style | Current Rating (Amps) | Contact Material | Actuator Length [x] | Voltage Rating - DC | Mounting Type | Circuit | Actuator Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 1.5 mm | Polyamide (PA) Nylon | 10000 Cycles | 153 gf | 204 gf | Non-Shorting (BBM) | -20 ░C | 70 °C | On-On-On | Gull Wing | 300 mA | Copper Alloy | 1.5 mm | 4 V | Right Angle Surface Mount | SP3T | Standard | Gold |
