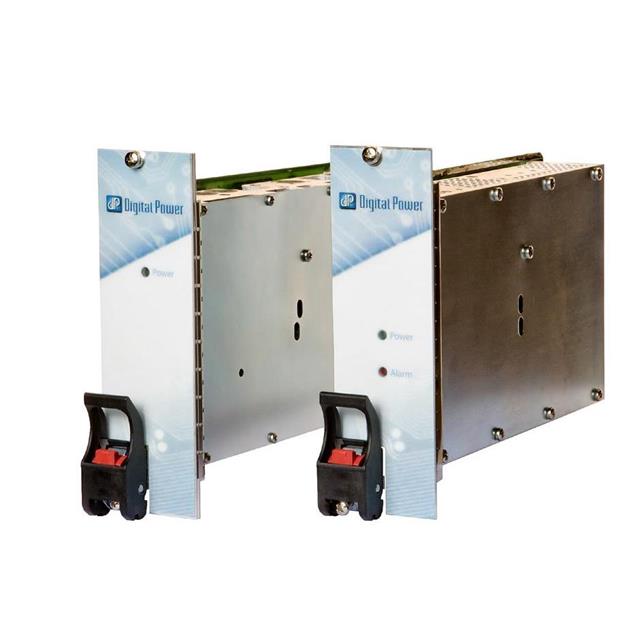

CPCI-DC Series

Catalog

CPCI DC/DC CNVRTR 5V 3.3V +/-12V

Part	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output 4	Type	Voltage - Input (Min) [Min]	Standard Number	Approval Agency	Mounting Type	Voltage - Output 1	Applications	Voltage - Output 3	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max)	Number of Outputs	Voltage - Output 2	Power (Watts)	Efficiency
Digital Power Corporation CPCI-DC-3U-200/24R	36 V	-5 °C	70 °C	-12 V	Enclosed	18 V	60950-1	CE cURus	Compact PCI®	5 V	ITE (Commercial)	12 V	3.94 in	6.67 "	100 mm	169.4 mm	1.6 "	40.6 mm	3 A 25 A 36 A 500 mA	4	3.3 V	286 W
Digital Power Corporation CPCI-DC-6U-650 (100-4650-00)	72 V	-5 °C	70 °C	-12 V	Enclosed	36 V	60950-1	CE cURus	Compact PCI®	5 V	ITE (Commercial)	12 V			6.68 " 169.6 mm	10.31 " 261.9 mm		1.59 " 40.3 mm	1.5 A 7 A 70 A 80 A	4	3.3 V	733 W
Digital Power Corporation CPCI-DC-3U-300/24R	36 V	-5 °C	70 °C	-12 V	Enclosed	20 V	60950-1	CE cURus	Compact PCI®	5 V	ITE (Commercial)	12 V	3.94 in	6.67 "	100 mm	169.4 mm	1.6 "	40.6 mm		4	3.3 V	348 W
Digital Power Corporation CPCI-DC-6U-600/24 (900-6001-99)	36 V	-5 °C	70 °C		Enclosed		60950-1	CE cURus	Compact PCI®		ITE (Commercial)				6.68 " 169.6 mm	10.31 " 261.9 mm		1.59 " 40.3 mm		4
Digital Power Corporation CPCI-DC-3U-200/48	72 V	-5 °C	70 °C	-12 V	Enclosed	36 V	60950-1	CE cURus	Compact PCI®	5 V	ITE (Commercial)	12 V	3.94 in	6.67 "	100 mm	169.4 mm	1.6 "	40.6 mm	3 A 20 A 30 A 500 mA	4	3.3 V	241 W	83 %
Digital Power Corporation CPCI-DC-3U-200/24	36 V	-5 °C	70 °C	-12 V	Enclosed	18 V	60950-1	CE cURus	Compact PCI®	5 V	ITE (Commercial)	12 V	3.94 in	6.67 "	100 mm	169.4 mm	1.6 "	40.6 mm	3 A 25 A 36 A 500 mA	4	3.3 V	286 W
Digital Power Corporation CPCI-DC-3U-300/48	72 V	-5 °C	70 °C	-12 V	Enclosed	36 V	60950-1	CE cURus	Compact PCI®	5 V	ITE (Commercial)	12 V	3.94 in	6.67 "	100 mm	169.4 mm	1.6 "	40.6 mm	1 A 5 A 30 A 40 A	4	3.3 V	354 W	83 %
Digital Power Corporation CPCI-DC-6U-350/24 (900-6001-99)	36 V	-5 °C	70 °C	-12 V	Enclosed	18 V	60950-1	CE cURus	Compact PCI®	5 V	ITE (Commercial)	12 V			6.68 " 169.6 mm	10.31 " 261.9 mm		1.59 " 40.3 mm	1.5 A 7 A 50 A 60 A	4	3.3 V	550 W
