070247 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 16POS 2.54MM

Part	Contact Material	Mounting Type	Material Flammability Rating	Contact Finish - Post	Connector Type	Contact Finish - Mating	Contact Shape	Fastening Type	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Termination	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Contact Length - Post [x]	Contact Length - Post [x]	Features	Style	Applications	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating [x]	Pitch - Mating	Pitch - Mating	Number of Positions

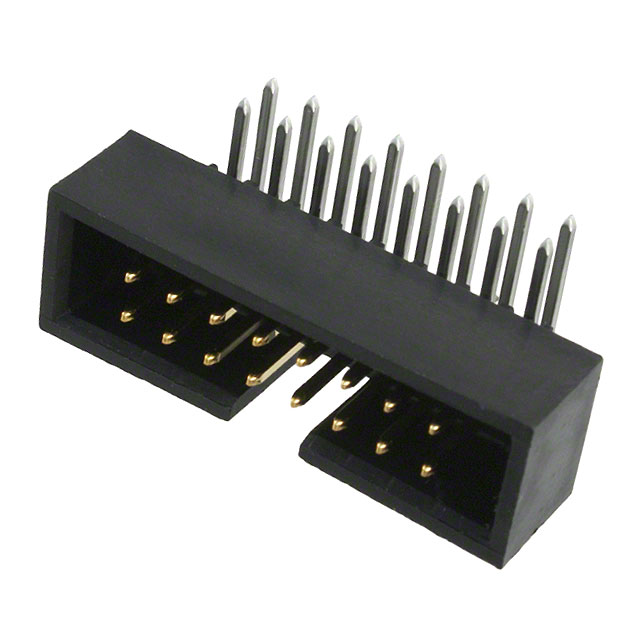

Molex 0702471651	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	15 µin	0.38 µm	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám	16	Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm

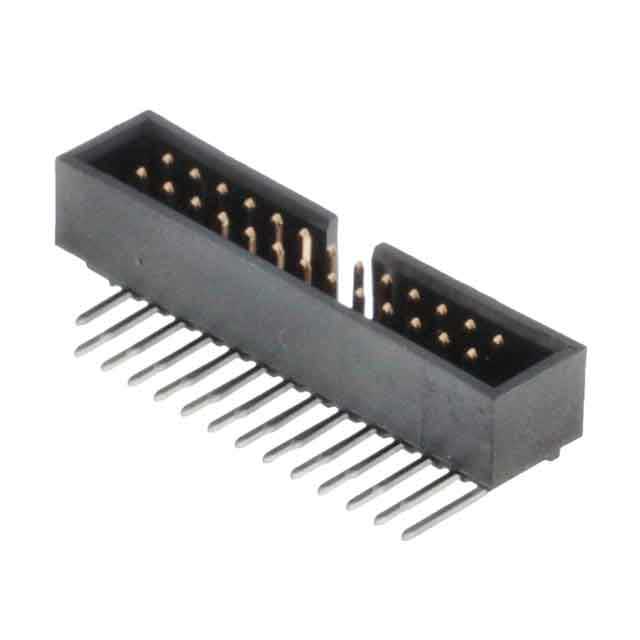

Molex 0702472651	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	15 µin	0.38 µm	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	26
Molex 0702476402	Brass	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	64
Molex 0702471251	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	15 µin	0.38 µm	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	12

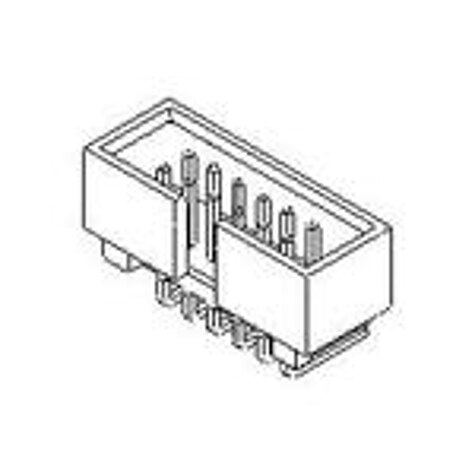

Molex 0702474054	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	5 µin	0.127 µm	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	40
Molex 0702473402	Brass	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	34
Molex 0702474002	Brass	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	40
Molex 0702476001	Brass	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	15 µin	0.38 µm	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	60
Molex 0702471252	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	30 Áin	0.76 Ám	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	12
Molex 0702476051	Phosphor Bronze	Through Hole Right Angle	UL94 V-0	Tin	Header	Gold	Square	Push-Pull	Polybutylene Terephthalate (PBT) Glass Filled	15 µin	0.38 µm	Shrouded - 4 Wall	Solder	Male Pin	0.35 in	8.89 mm	0.12 in	3.05 mm	Keying Slot	Board to Board Cable	Automotive General Purpose Lighting Medical Telecommunications	2	74.8 Áin	1.9 Ám		Black	2.54 mm	0.1 in	All	6.1 mm	0.24 in	0.1 in	2.54 mm	60
