SPB Series

Catalog

DIN RAIL TERMINAL BLOCKS SPB 2.5/4

Part	Voltage - UL	Color	Plug Wire Entry	Current - UL	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Mounting Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Number of Positions	Current - IEC	Number of Levels	Positions Per Level	Wire Strip Length	Housing Material	Insulation Height	Insulation Height	Material Flammability Rating

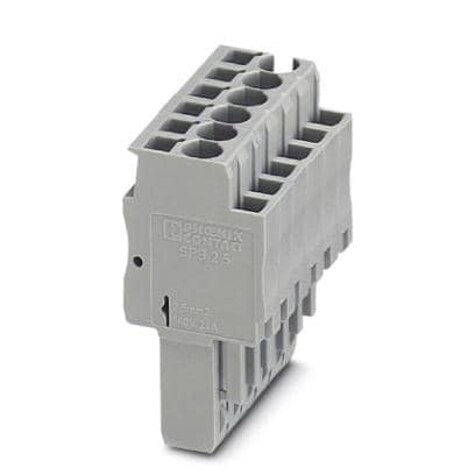

Phoenix Contact 3040135	300 V	Gray	180 °	20 A	Screwless - Spring Cage Tension Clamp	28 AWG	12 AWG	Plug Female Sockets	Free Hanging (In-Line)	0.08 mm²	4 mm²	500 V	4	24 A	1	4
Phoenix Contact 3043103	300 V	Gray	180 °	20 A	Screwless - Spring Cage Tension Clamp	28 AWG	12 AWG	Plug Female Sockets	Free Hanging (In-Line)	0.08 mm²	4 mm²	500 V	1	24 A	1	1
Phoenix Contact 3040106	300 V	Gray	180 °	20 A	Screwless - Spring Cage Tension Clamp	28 AWG	12 AWG	Plug Female Sockets	Free Hanging (In-Line)	0.08 mm²	4 mm²	500 V	1	24 A	1	1	10 mm	Polyamide (PA) Nylon	39 mm	1.535 in	UL94 V-0
Phoenix Contact 3043132	300 V	Gray	180 °	20 A	Screwless - Spring Cage Tension Clamp	28 AWG	12 AWG	Plug Female Sockets	Free Hanging (In-Line)	0.08 mm²	4 mm²	500 V	1	24 A	1	1
