91269 Series

Catalog

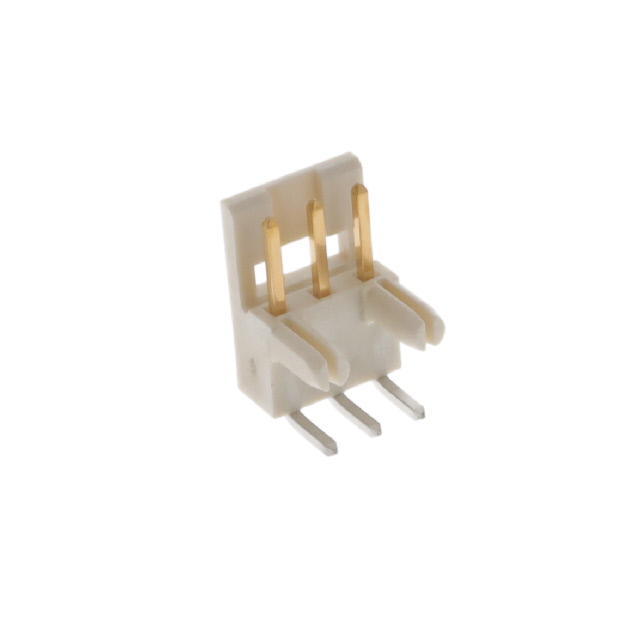

CONN HEADER R/A 3POS 2MM

Part	Insulation Height	Insulation Height	Connector Type	Contact Length - Mating	Contact Length - Mating	Termination	Number of Positions Loaded	Mounting Type	Insulation Color	Current Rating (Amps)	Features	Contact Material	Number of Rows	Style	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Shape	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Shrouding	Insulation Material	Number of Positions	Number of Positions
Amphenol ICC (FCI) 91269-103LF	0.118 in	3 mm	Header	4 mm	0.157 in	Solder	All	Through Hole Right Angle	Cream	2 A	Board Guide	Copper Alloy	1	Board to Cable/Wire	Tin	30 Áin	0.76 Ám	200 V	Square	Gold GXT™	0.079 in	2 mm	Latch Holder	2.54 mm	0.1 in	UL94 V-0	2 çm	78.7 çin	Male Pin	Shrouded - 1 Wall	Thermoplastic
Amphenol ICC (FCI) 91269-115LF	0.118 in	3 mm	Header	4 mm	0.157 in	Solder	All	Through Hole Right Angle	Cream	2 A	Board Guide	Copper Alloy	1	Board to Cable/Wire	Tin	30 Áin	0.76 Ám	200 V	Square	Gold GXT™	0.079 in	2 mm	Latch Holder	2.54 mm	0.1 in	UL94 V-0	2 çm	78.7 çin	Male Pin	Shrouded - 1 Wall	Thermoplastic	15
Amphenol ICC (FCI) 91269-116LF	0.118 in	3 mm	Header	4 mm	0.157 in	Solder	All	Through Hole Right Angle	Cream	2 A	Board Guide	Copper Alloy	1	Board to Cable/Wire	Tin	30 Áin	0.76 Ám	200 V	Square	Gold GXT™	0.079 in	2 mm	Latch Holder	2.54 mm	0.1 in	UL94 V-0	2 çm	78.7 çin	Male Pin	Shrouded - 1 Wall	Thermoplastic		16
