CS42L52 Series
Manufacturer: Cirrus Logic Inc.
Beta
⌘K
EVAL BOARD FOR CS42L52
| Part | Supplied Contents | Embedded | Embedded | Contents | Utilized IC / Part | Function | Secondary Attributes | Primary Attributes | Type | Supplier Device Package | Mounting Type | Voltage - Supply, Digital [Max] [custom] | Voltage - Supply, Digital [Min] [custom] | Number of ADCs / DACs [custom] | Number of ADCs / DACs [custom] | Dynamic Range, ADCs / DACs (db) Typ | Dynamic Range, ADCs / DACs (db) Typ | Sigma Delta | Resolution (Bits) | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Data Interface |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

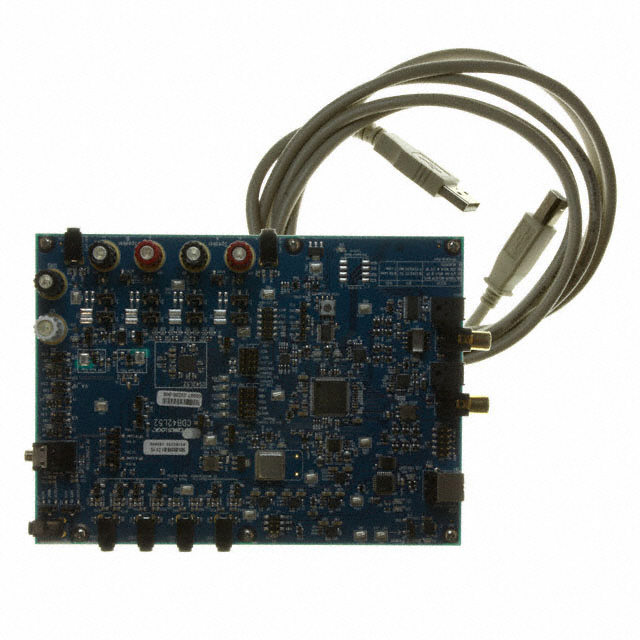

 Cirrus Logic Inc. | Board(s) | CPLD FPGA | Board(s) | CS42L52 | CODEC | Graphical User Interface (GUI) I2C SPI USB Interface(s) | 4 Stereo Audio Inputs S/PDIF Inputs and Outputs Stereo Line and Speaker Outputs | Audio | ||||||||||||||||

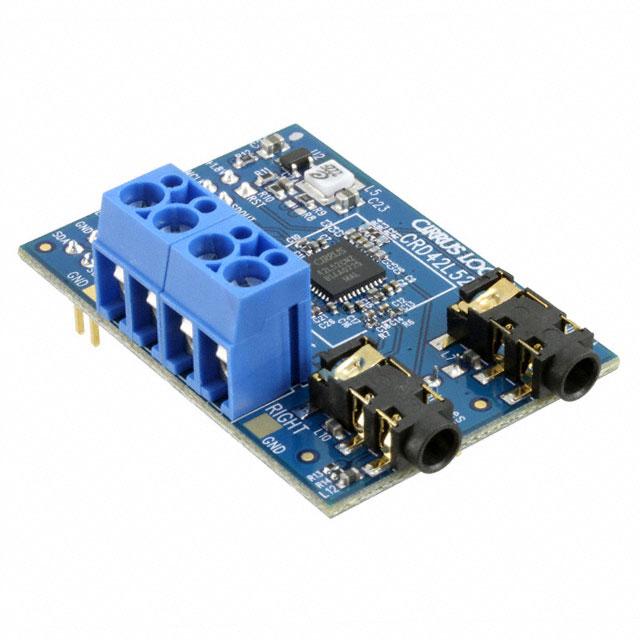

 Cirrus Logic Inc. | Board(s) | 8-Bit MCU | Board(s) | CS42L52 | CODEC | Graphical User Interface (GUI) | 2 Stereo Analog Inputs S/PDIF Transmitter and Receiver Stereo Line and Headphone Outputs | Audio | ||||||||||||||||
 Cirrus Logic Inc. | Stereo Audio | 40-QFN-EP (6x6) | Surface Mount | 2.63 V | 1.65 V | 1 | 1 | 98 dB | 99 dB | 24 b | 85 °C | -40 C | 2.63 V | 1.65 V | Serial |
