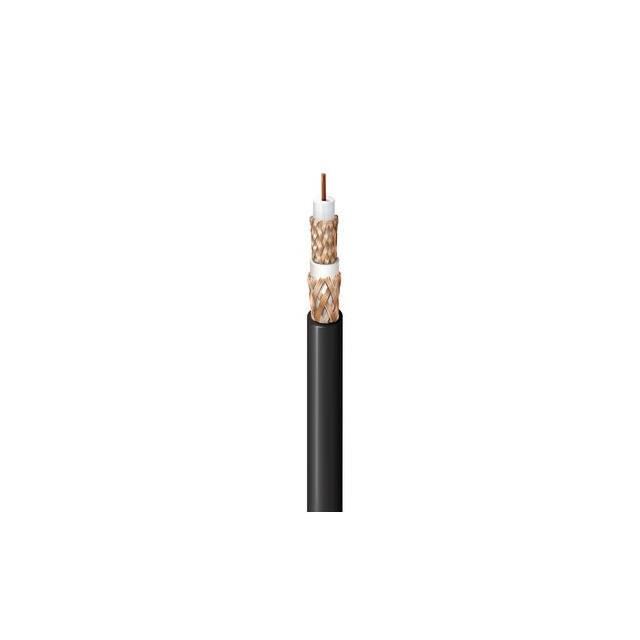

1856A Series
Manufacturer: Belden Inc.
Beta
⌘K
#20 PE/GIFHDPELDPE PVC TRIAX
| Part | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Shield Coverage | Conductor Material | Jacket (Insulation) Material | Shield Type | Wire Gauge | Cable Group | Usage | Cable Type | Conductor Strand | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 83 | 0.145 in | 3.68 mm | -50 °C | 80 °C | Copper Bare | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Braid | 20 AWG | RG-59 | Video | Triaxial | Solid | 304.8 m | 1000 ft | 9.14 mm | 0.36 in | Yellow | ||
Belden Inc. | 83 | 0.145 in | 3.68 mm | -50 °C | 80 °C | Copper Bare | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Braid | 20 AWG | RG-59 | Video | Triaxial | Solid | 304.8 m | 1000 ft | 9.14 mm | 0.36 in | Black | ||
Belden Inc. | 83 | 0.145 in | 3.68 mm | -50 °C | 80 °C | Copper Bare | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Braid | 20 AWG | RG-59 | Video | Triaxial | Solid | 304.8 m | 1000 ft | 9.14 mm | 0.36 in | Red | ||
Belden Inc. | 83 | 0.145 in | 3.68 mm | -50 °C | 80 °C | Copper Bare | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Braid | 20 AWG | RG-59 | Video | Triaxial | Solid | 304.8 m | 1000 ft | 9.14 mm | 0.36 in | Green | ||
Belden Inc. | 83 | 0.145 in | 3.68 mm | -50 °C | 80 °C | Copper Bare | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | Braid | 20 AWG | RG-59 | Video | Triaxial | Solid | 9.14 mm | 0.36 in | Black | 1219.2 m | 4000 ' |
