336236 Series

Catalog

FASTON RECEP 6,35 LIF

Part	Tab Length	Tab Length	Wire Gauge [Min]	Wire Gauge [Max]	Tab Thickness	Tab Thickness	Contact Material	Length - Overall [x]	Length - Overall [x]	Termination	Terminal Type	Insulation	Gender	Mounting Type	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter	Tab Width	Tab Width	Contact Finish
TE Connectivity Raychem Cable Protection 336236-1	0.303 in	7.7 mm	13 AWG	17 AWG	0.032 in	0.81 mm	Brass	17.1 mm	0.673 in	Crimp	Standard	Non-Insulated	Female	Free Hanging (In-Line)	0.169 in	0.118 in	3 mm 4.29 mm	6.35 mm	0.25 in

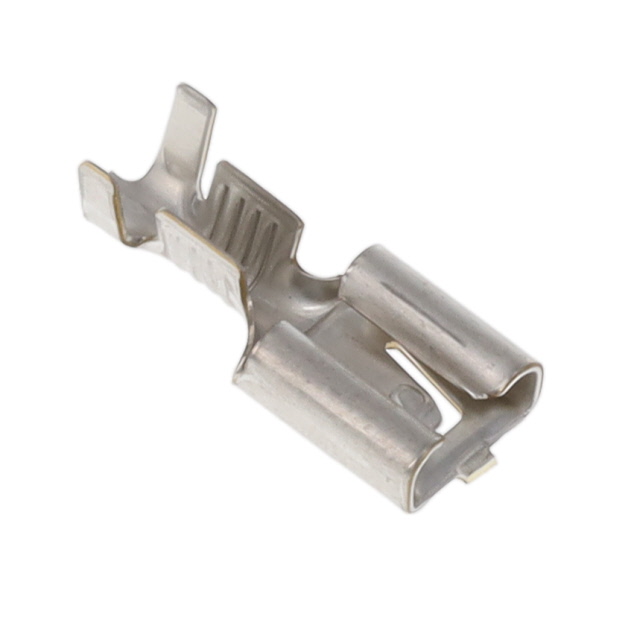

TE Connectivity Raychem Cable Protection 336236-3	0.303 in	7.7 mm	13 AWG	17 AWG	0.032 in	0.81 mm	Brass	17.1 mm	0.673 in	Crimp	Standard	Non-Insulated	Female	Free Hanging (In-Line)	0.169 in	0.118 in	3 mm 4.29 mm	6.35 mm	0.25 in	Tin
